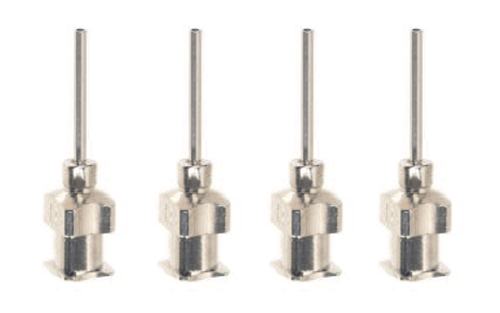

High precision and tolerance for use in automated applications. With stainless steel
cannula and nickel plated brass hub. Length of 1/2" (12.7mm). Sold in packs of 12.

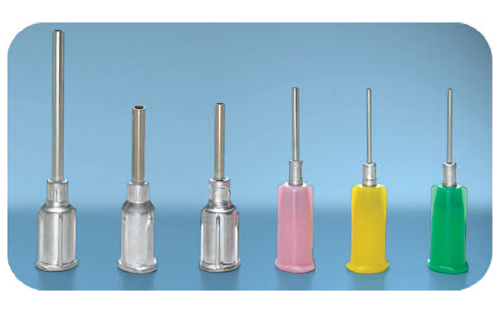

The TS Series Dispensing Tips offer a
variety of dispensing performance and
flexibility options. Stainless steel
tubing is cut to precise lengths and
ground to be burr-free. Cut tubing is
crimped into aluminum locking insert,
then molded into polyethylene hubs.
Molded hub colors correspond to
gauge size. All TS Series tips secure
to Techcon Systems syringe barrels
and correspond to the Luer lock

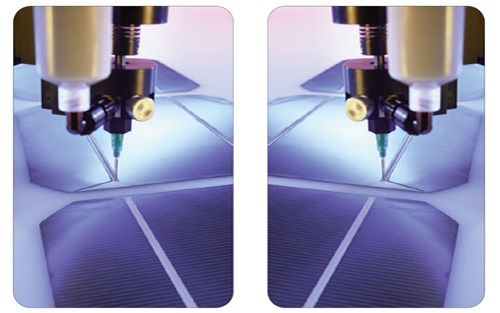

The Rotary Valves use a rotary feed screw (auger) to dispense fluid with
a positive displacement action, allowing for ultra-precise control of the
dispensing process. The unique design ensures that material is
constantly present at the feed screw inlet, while the controlled rotation of
the feed screw moves the material from the feed to the discharge point.
Discrete control of the forward and reverse rotations of the feed screw
controls the amounts of material discharged.

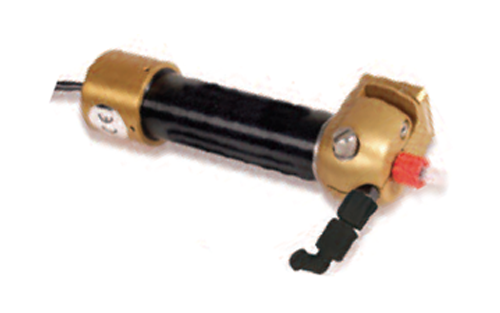

The unique DMP (Disposable Material Path) Valve (TS5000DMP) offers
a choice of 3 different feed screw sizes (6, 8 and 16-pitch), all made of
Delrin®. The DMP Valve has a hinged doorway that opens easily so the
disposable auger can be removed and replaced within seconds, while
the line is still in operation, significantly reducing downtime and waste.
The choice of left, right or center hinge openings makes the valve
suitable for mounting on most automated systems.
Solder paste, die attach, surface mount adhesive, chip encapsulation,
dam writing, two-part epoxy, UV adhesive.
• Precise and consistent shot sizes
• Motor reverse capability
• Field replaceable wetted parts
• Adjustable dispense rate
• Closed-loop motor control with encoder feedback (encoder version)
The TS7000 Series IMP Rotary Valves are the latest additions to the
Rotary Microvalve family. The valve uses a feed screw (auger) to
dispense fluid with a rotary displacement action, allowing ultra-precise
control of the dispensing process. The valve’s modular design allows
quick and easy replacement of the feed screw/chamber cartridge
assembly without removing the valve from the machine. In addition, the
valve cartridge can be interchanged to use with TS5000DMP feed screw
The TS7000 Series IMP valve is available in 4 choices of feed screw
sizes (32-pitch, 16-pitch, 8-pitch and high output 8-pitch), all made of
precision hardened tool steel. An encoder motor version is available for
applications that require closed-loop motor control with encoder feed
Solder Paste, Die Attach, Surface Mount Adhesive (SMA), Chip
Encapsulation, Dam Writing, Thermal Grease.
• Accurate and repeatable dispensing output
• Precision and durable feed screw/chamber
• Field replaceable spare parts
• Quick and easy feed screw/chamber cartridge changeover
• Low-maintenance design
• Interchangeable with TS5000DMP valve body
• Flexible syringe mounting position
• Flexible needle installation position
• Flexible encoder position (encoder version)
• Closed-loop motor control with encoder feed back (encoder version)

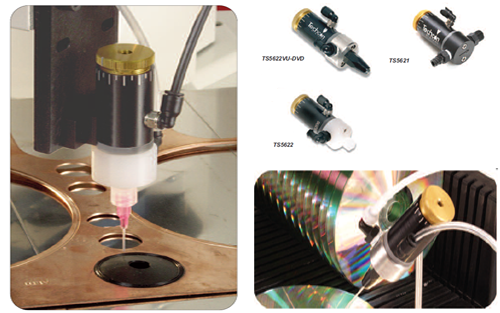

Diaphragm Valves are designed to dispense low to medium viscosity
materials with precision accuracy over a wide range of shot and bead sizes
down to a fraction of a micro liter. A short opening stroke provides fast,
positive shut-off. An external stroke control adjustment makes it easy to finetune
shot sizes. The compact design allows for mounting flexibility and easy
integration into automated applications.
Body available in FDA-compliant Ultra High Molecular Weight Polyethylene
(UHMWPE) for most applications. A Teflon® version for chemical
compatibility, and a Delrin® version for UV-curables are also available.
A stainless steel version with optimized internal fluid route is especially
dedicated to dispense UV-cure adhesives, resins and lacquers used in the
manufacture of DVDs and CDs. A hand-held actuated valve is also available.
The valves are easy to use and maintain with user replaceable spare parts.
• Excellent moisture sensitive resistance
• Adjustable stroke control
• Compact size and weight
• Simple and low maintenance design
• Long life cycles
To dispense a wide range of shot sizes of low viscosity fluids such as:
cyanoacrylates, anaerobics, liquid fluxes, solvents, UV-cure adhesives, resins
The Spray Valves are designed for precise spray applications of low
viscosity materials. Total control of the spray cycle is provided by
adjustable fluid flow and precise control of pre-spray, atomizing air and
post-spray with the TS500R Valve Controller. Normal maintenance is
simple and downtime is virtually eliminated with only one seal to replace.
The TS5540 Spray Valves come with FDA-Compliant 303 stainless steel
construction in both air cylinder and fluid housing. A field replaceable
Delrin® seat provides positive shut-off and extends life cycles. The
compact design and easy-mount threaded hole allow for easy integration
into automated applications.
• Consistent spray coverage with no overspray
• Positive shut-off
• Adjustable flow control
• Long life cycles
To spray fine mist of low viscosity fluids such as: conformal coating,
solvent, oil, etc.

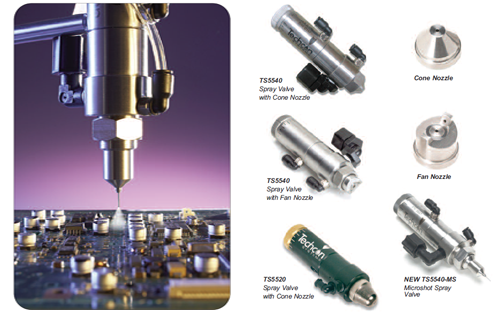

TS5540-MS Microshot Spray Valve
The TS5540-MS spray valve is designed to spray low viscosity materials
through disposable dispensing tips. Spray patterns range from 0.18" -
0.60" (4.6mm-15mm) in diameter.
