BT Series
Use these double helix Brush Tips for “spread”
applications such as glues and other materials.
Soft brush is made of Red Sable. Stiff brush is
made of Nylon. Sold in packs of 12.

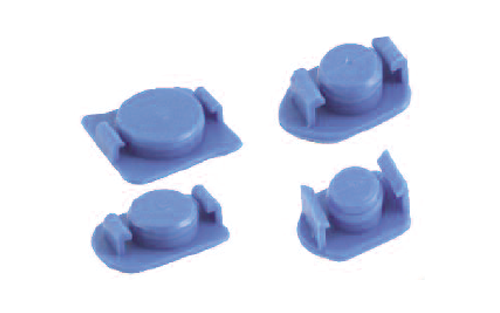

700 Series End Caps
Designed to seal large end of the syringe
barrel to ensure no contaminants come in
contact with material during storage and
shipment. Standard color is blue. Made from
Polypropylene. Sold in bulk and packs of 50.

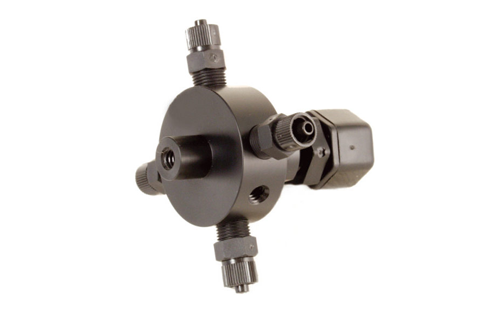

TS918-46 4-Way Manifold
The TS918-46 4-way manifold controls up to 4 valves from 1 pressure reservoir or tank.
The TS918-46 four-way manifold is designed to provide equal flow for up to four fluid lines for feeding multiple dispensing valves whenever precision fluid flow to multiple stations is required. Made from Delrin® and suitable with UV materials, the manifold can be used with any Techcon Systems pneumatic valve.
Product Comprises of:
• Threaded mounting rod
• 4 Luer Lock fittings are included
• 3/8" NPT O.D. tube fitting is included)
• 4 blank fittings
• 1/4" NPT x female Luer lock

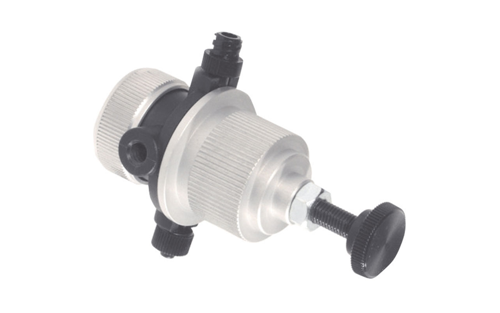

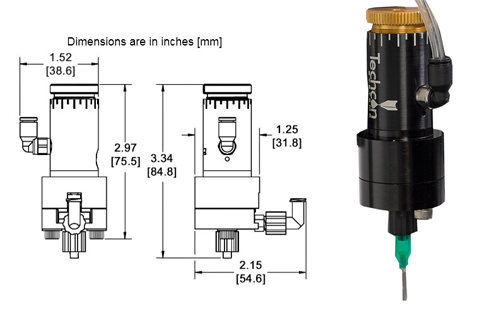

TS5624DMP Disposable Material Path Diaphragm Valve
The TS5624 Disposable Diaphragm Valve features a "first to market" Disposable Material Path. Difficult fluids such as CA′s and pre-mixed 2-part epoxies, can now be dispensed without the need of frequent cleaning, by simply replacing the entire wetted area in a matter of seconds, while the valve stays on the production line.
The wetted parts are manufactured from black Polyethylene to prevent moisture and UV light come into contact with the dispense fluids. As a result, moisture sensitive fluids such as Cyanoacrylate and UV cured adhesives can be dispensed reliably and accurately.
The TS5624 dispenses low to medium viscosity fluids over a wide range of shot and bead sizes, down to a fraction of a micro liter. An internal spring return makes the valves fully adaptable for use with Techcon Systems controllers. A short opening stroke provides an extremely fast and positive shut-off.
The seal-less valve design offers an excellent moisture sensitive resistance and the incorporated diaphragm creates a barrier between the wetted parts and the air cylinder.
The valve comes with the following items:
• Mounting bracket kit
• Valve air hose
• Luer lock fluid line
• Sample packet of DMP inserts
• Dispensing tip selection pack
Features
• Disposable material path – no cleaning
• Compact size and weight
• Excellent moisture sensitive resistance
• No special tools required
• Low cost of ownership
• Accurate and repeatable dispensing

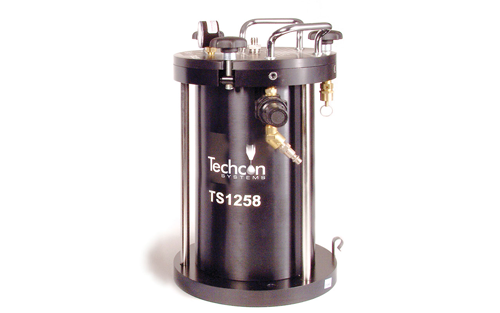

TS1258 Pressure Tank
Techcon Systems TS1258 pressure reservoir or tank is designed to accommodate fluids that are supplied in bottle or container form. Constant air pressure forces the fluid from the bottle through pre-installed tubing up to the point of dispense. Black fluid tubing is available for UV applications. Compression fittings are used on the lid of the pressure reservoir or tank to ensure a continuous fluid path to the dispensing valve. Air-tight seals ensure there are no leak points or air entrapment problems and that fluid touches nothing but tubing from pressure reservoir or tank to the dispensing valve. Disposable polyethylene fluid lines can be changed quickly and easily. Optional fluid line kits include top and bottom ferules, compression fitting, black and clear fluid lines (no clear fluid line supplied with TS1252-4MM).

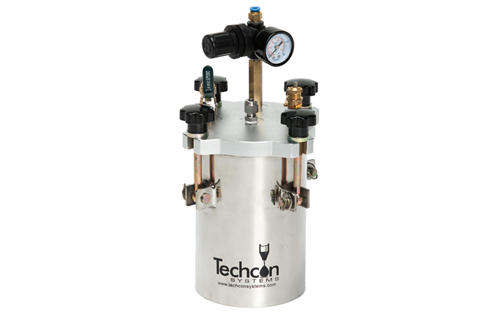

TS1254 Pressure Tank / Reservoir
The new medium size TS1254 pressure tank is designed to accommodate low to medium viscosity fluids, including solvents, adhesives, as well as Cyanoacrylate (CA). Equip with pressure relief (safety) valve and couple with stainless steel chamber, the TS1254 provides safe and secure dispensing for all applications. Airtight lid seal ensures there are no leak points for air or material.
The material feed line is located in the center of the lid to allow direct and continuous feed path from the material container to the valve inlet. The TS1254 is supplied with ¼" (6mm) Teflon tubing to provide resistant to all types of dispensing fluids. An optional 4mm tubing kit (TS1252-4MM) is available.
