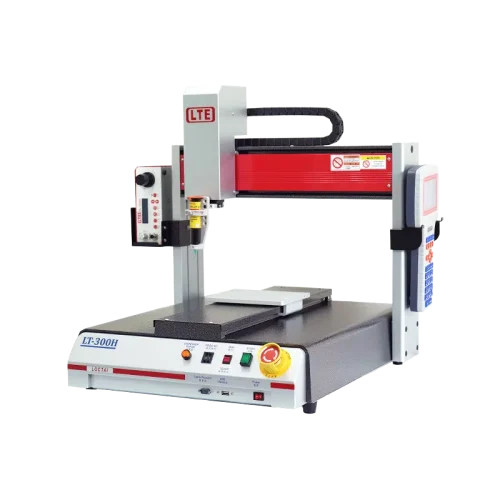

3-Axis Automated Dispensing Platforms

Features

Wide range of applications including Underfill, power supply potting and encapsulation, AR glasses, Lens Holder dispensing applications, conformal coating spraying, thermal material coating.
Optional accessories including dispensing controller, dispensing valve, dispensing fixture, LED spot light equipment, Pick & Place handling fixture, etc., providing automation solutions to meet different application requirements.
Single machine operation, easy to install.
User-friendly teaching box allows you to complete program settings easily.
CAD file conversion to dispensing path, time-saving and convenient.
The only PC-BASE control system with 3D arc interpolation capability.
Small footprint, suitable for laboratory and production line use.

Specifications

Model	LT-200H	LT-300H	LT-400H	LT-500H	LT-7050H
Effective Working Range X/Y/Z	200 / 200 / 50mm	300 / 300 / 100 mm	400 / 400 / 100 mm	500 / 500 / 100 mm	700 / 500 / 100 mm
Payload Y/Z	5 / 3 kg	10/ 5 kg	10/ 5 kg	10/ 5 kg	10/ 5 kg
Movement Speed XY/Z	500 / 250 mm/sec	800 / 320 mm/sec	800 / 320 mm/sec	800 / 320 mm/sec	500 / 250 mm/sec
Repeatability XYZ	±0.01 mm/Axis	±0.01 mm/Axis	±0.01 mm/Axis	±0.01 mm/Axis	±0.01 mm/Axis
Motor System	3-Phase Micro Stepping Motor	3-Phase Micro Stepping Motor	3-Phase Micro Stepping Motor	3-Phase Micro Stepping Motor	3-Phase Micro Stepping Motor
Motion Mode	PTP&CP	PTP&CP	PTP&CP	PTP&CP	PTP&CP
Linear&Circular Motion Mode	3 Axes (arbitrary path in 3D space available)	3 Axes (arbitrary path in 3D space available)	3 Axes (arbitrary path in 3D space available)	3 Axes (arbitrary path in 3D space available)	3 Axes (arbitrary path in 3D space available)
Teaching Mode	Teaching Pendant	Teaching Pendant	Teaching Pendant	Teaching Pendant	Teaching Pendant
Display Method	Teaching Pendant LCD	Teaching Pendant LCD	Teaching Pendant LCD	Teaching Pendant LCD	Teaching Pendant LCD
I/O Signal	8 Inputs / 8 Outputs	8 Inputs / 8 Outputs	8 Inputs / 8 Outputs	8 Inputs / 8 Outputs	8 Inputs / 8 Outputs
External Interface	RS232	RS232	RS232	RS232	RS232
Data Recording Capability	Up to 100 programs, each program up to 500~50,000 recording points	Up to 100 programs, each program up to 500~50,000 recording points	Up to 100 programs, each program up to 500~50,000 recording points	Up to 100 programs, each program up to 500~50,000 recording points	Up to 100 programs, each program up to 500~50,000 recording points
Data Storage Method	CF Card, USB	CF Card, USB	CF Card, USB	CF Card, USB	CF Card, USB
Dimensions (W x D x H)	315 x 360 x 510 mm	490 x 520 x 645 mm	590 x 620 x 645 mm	690 x 717 x 645 mm	890 x 740 x 645 mm
Weight	20 kg	35.5 kg	41.5 kg	46.5 kg	70 kg
Input Power	AC 100~240 V / 150W	AC 100~240 V / 320W	AC 100~240 V / 320W	AC 100~240 V / 320W	AC 100~240 V / 320W
Operating Environment Temperature	10~40°C	10~40°C	10~40°C	10~40°C	10~40°C
Operating Environment Humidity	20~85% no condensation	20~85% no condensation	20~85% no condensation	20~85% no condensation	20~85% no condensation
