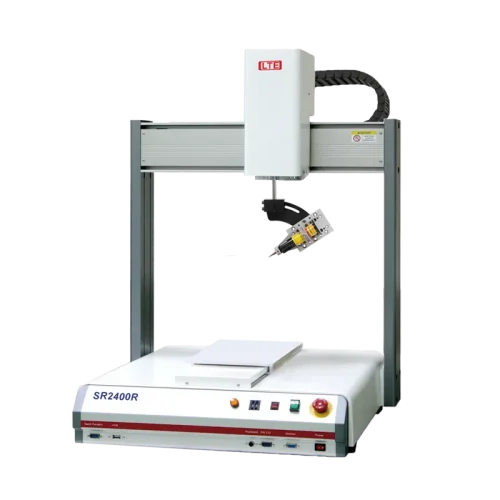

4-Axis Automated Dispensing Platforms
Features
- Can execute arbitrary paths in 3D space with four-axis simultaneous motion function.
- Complete groove or component gap coating operations on work pieces.
- Can utilize fourth-axis rotation function to improve areas that three-axis machines cannot coat.
- Features four-axis calibration function, easy calibration after needle replacement while maintaining precision.
Specifications
| Model | LT-2400R |
|---|---|
|
Effective Working Range
X/Y/Z/R |
400 / 400 / 150 mm / ± 720° |
|
Payload Y/Z |
10 / 3 kg |
|
Movement Speed X/Y/Z/R |
500 / 320 mm/sec |
|
Repeatability X/Y/Z/R |
±0.01 mm/Axis |
|
Motor System |
Micro Stepping Motor |
|
Motion Mode |
PTP&CP |
|
Linear&Circular Motion Mode |
4 Axes (arbitrary path in 3D space available) |
|
Teaching Mode |
Teaching Pendant |
|
Display Method |
Teaching Pendant LCD |
|
I/O Signal |
8 Inputs / 8 Outputs |
|
Data Recording Capability |
100 programs, each program up to 500~50,000 recording points |
|
Data Storage Method |
CF Card, USB |
|
Dimensions (W x D x H) |
640 x 652 x 914 mm |
|
Weight |
58 kg |
|
Input Power |
AC 100~240 V / 320W |
|
Operating Environment Temperature |
10~40°C |
|
Operating Environment Humidity |
20~85% no condensation |
