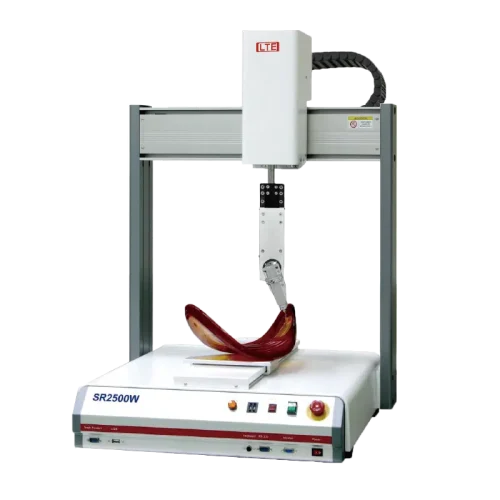

5-Axis Automated Dispensing Machine
Features
- Intelligent reverse function, pipeline non-entangling.
- No need to write and edit complex programs, simple and easy to operate.
- Can select and switch between 3-axis, 4-axis, 5-axis simultaneous motion modes.
- Complete five-axis simultaneous motion, easily complete any high-difficulty horizontal, vertical and curved surface dispensing paths.
Specifications
| Model | LT-2500W |
|---|---|
|
Effective Working Range
X/Y/Z/R/V |
500 / 500 / 150 mm / ± 720° / ± 70° |
|
Payload Y/Z |
10 / 2 kg |
|
Movement Speed X/Y/Z |
500 / 320 mm/sec |
|
Repeatability X/Y/Z/R/V |
±0.02 mm/Axis |
|
Motor System |
Micro Stepping Motor |
|
Motion Mode |
PTP&CP |
|
Linear&Circular Motion Mode |
5 Axes (arbitrary path in 3D space available) |
|
Teaching Mode |
Teaching Pendant |
|
Display Method |
Teaching Pendant LCD |
|
I/O Signal |
8 Inputs / 8 Outputs |
|
Data Recording Capability |
100 programs, each program up to 500~50,000 recording points |
|
Data Storage Method |
CF Card, USB |
|
Dimensions (W x D x H) |
860 x 752 x 1065 mm |
|
Weight |
65 kg |
|
Input Power |
AC 100~240 V / 320W |
|
Operating Environment Temperature |
10~40°C |
|
Operating Environment Humidity |
20~85% no condensation |
