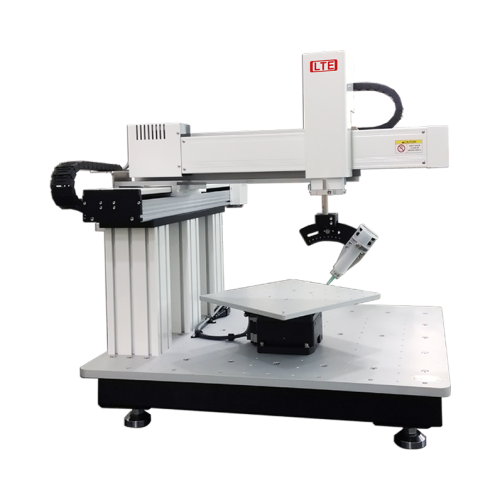

Cantilever Type Automated Dispensing Machine
Features
- AC power input motor system, suitable for high-speed high-torque operation applications.
- Teaching-type programming system with simple commands for easy operation.
- Equipped with installation mounting bracket, adaptable to machine models of various working sizes.
- Excellent machine performance, can execute arbitrary paths in 3D space.
- Cantilever mechanism design, combined with I/O control, can be integrated with various production conveyor systems.
Specifications
| Model | SR-4040GB-R |
|---|---|
|
Effective Working Range
X/Y/Z/R |
350 / 400 / 100 mm / ± 360° |
|
Payload Z |
5 kg |
|
Movement Speed XY/Z |
800 / 320 mm/sec |
|
Rotation Angular Speed R |
360° / sec |
|
Repeatability XYZ/R |
±0.01 mm/Axis / ±0.01° |
|
Motor System |
5-Phase Micro Stepping Motor |
|
Motion Mode |
PTP & CP |
|
Linear and Circular Motion Mode |
4 Axes (arbitrary path in 3D space available) |
|
Teaching Mode |
Teaching Pendant |
|
Display Method |
Teaching Pendant LCD |
|
I/O Signal |
8 Inputs / 8 Outputs |
|
External Interface |
RS 232 |
|
Data Recording Capability |
At least 100 programs, each program up to 500~50,000 recording points |
|
Data Storage Method |
CF Card, USB |
|
Data Processing Speed |
32 bit |
|
Dimensions (W x D x H) |
840 x 770 x 800 mm |
|
Weight |
100 kg |
|
Input Power |
AC 100~240 V / 320W |
|
Operating Environment Temperature |
10~40°C |
|
Operating Environment Humidity |
20~85% no condensation |
