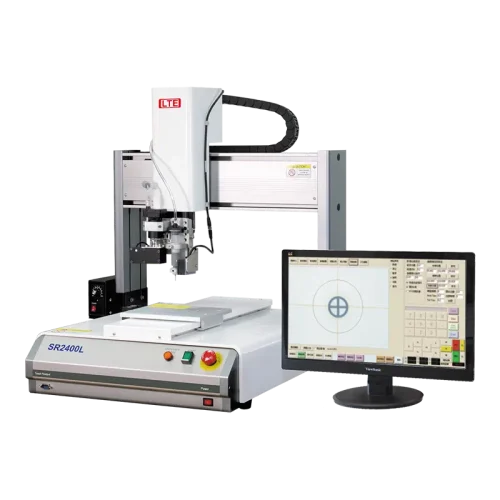

Laser Vision Automated Dispensing Machine
Features
- Automatic compensation and correction of paths, increasing operation precision and improving production efficiency.
- Can use vision function to write dispensing paths on screen, and can preview and simulate dispensing path execution.
- Features needle length measurement system and offset correction system, can compensate for errors caused by needle replacement, and automatically correct dispensing path coordinates through vision function.
- Equipped with high-precision laser measurement system, accurately measures work piece height variations and compensates dispensing working height.
- Image path display function, can convert dispensing paths into image display mode.
Specifications
| Model | LT-2400L |
|---|---|
|
Effective Working Range
X/Y/Z |
350 / 400 / 100 mm |
|
Work Platform Payload Capacity |
Max. 10 kg |
|
Movement Speed XY/Z |
Max. 800 / 250 mm/sec [* 1] |
|
Repeatability X/Y/Z |
±0.008 mm/Axis [* 2] |
|
Resolution Capability |
0.001 mm |
|
Motor System |
XY-axis Linear Motor(Optical Scale Feedback) /
Z-axis Micro Stepping Motor |
|
Motion Mode |
PTP & CP |
|
Teaching Mode |
Industrial Computer (Windows Operating System) |
|
I/O Signal |
8 Inputs / 8 Outputs |
|
External Interface |
RS 232 |
|
Dimensions (W x D x H) |
640 x 675 x 737 mm |
|
Weight |
65 kg |
|
Input Power |
AC 100~240 V / 450W |
|
Operating Environment Temperature |
10~40°C |
|
Operating Environment Humidity |
20~85% no condensation |
- [ * 1 ] : Maximum moving speed will change due to different machine load weights.
- [ * 2 ] : Repeatability is the single-axis movement repetition position accuracy of the machine, not the comprehensive accuracy of the machine (alignment accuracy + machine movement accuracy); using different lens magnifications and different work pieces will produce different machine comprehensive accuracy.
