1-Series Automated Soldering Machine
Precision Automated Soldering for Industrial Assembly

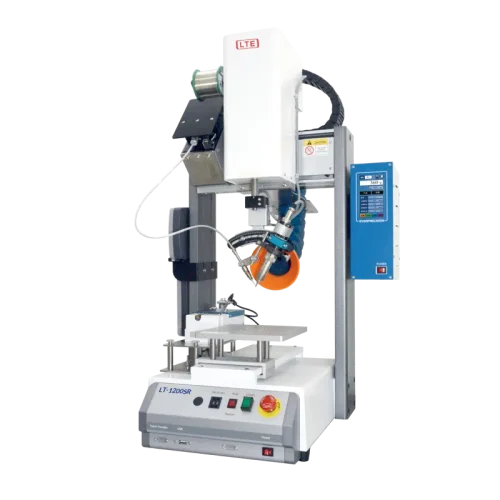

FUWAYTAI 1-Series Automated Soldering Machine provides programmable and repeatable soldering for industrial assembly applications. The series includes LT-1200-SR and LT-1400-SR models with different working areas to support various production requirements.
The X/Y/Z/R motion system supports flexible multi-angle soldering, while programmable solder-feed control helps meet different process requirements. Both models provide ±0.01 mm/axis repeatability and support solder wire diameters from 0.4 to 1.2 mm.
A teaching pendant enables convenient programming and operation, with support for up to 100 programs. Temperature control up to 450°C and selectable cleaning methods provide flexibility for automated soldering processes.
Features
- Self-Developed Hardware & Software:
Engineered in Taiwan with independently developed hardware and software to support machine quality and after-sales service. - High-Rigidity Base & Linear Rails:
A high-rigidity chassis and precision linear guides support accurate motion and long-term mechanical stability. - Programmable Soldering Control:
Flexible programming and precise solder-feed control support different production requirements. - Versatile Process Integration:
Flexible machine configuration supports different soldering processes and production requirements. - Flexible Multi-Angle Motion:
X/Y/Z/R motion with rotary-axis adjustment enables flexible soldering from different angles.
Specifications
| Model | LT-1200-SR | LT-1400-SR |
|---|---|---|
Moving Area (X/Y/Z/R) | 200 / 200 / 100 mm / ±360° | 400 / 400 / 100 mm / ±360° |
Working Area (X/Y) | 150 / 200 mm | 365 / 400 mm |
Max. Speed | XY/Z：400 / 250 mm/sec R : 720°/sec | XY/Z：400 / 320 mm/sec R : 720°/sec |
Repeatability | ±0.01 mm/Axis | ±0.01 mm/Axis |
Data Memory Capacity | 9999 Points/Prog. 100 Programs | 9999 Points/Prog. 100 Programs |
Program System | CF Card / USB | CF Card / USB |
Display | Teach Pendant LCD | Teach Pendant LCD |
Drive System/ Stepping Motor | Micro Stepping Motor | Micro Stepping Motor |
Teaching Method | Teach Pendant | Teach Pendant |
Max.Temperature | Max. 450°C | Max. 450°C |
Temp.Control Power | 200 W (Optional : 280W ) | 200 W (Optional : 280W ) |
Solder Wire Diameters | ø 0.4 ~ 1.2 mm | ø 0.4 ~ 1.2 mm |
Solder Feeder System | Stepping Motor | Stepping Motor |
Clean System | Air / Brush | Air / Brush |
Air Pressure | 5~7 kg/cm² | 5~7 kg/cm² |
Power Supply | AC 100V ~ 230V / 450W | AC 100V ~ 230V / 450W |
Operating Environment Temp. | 10~40°C | 10~40°C |
Operating Environment Humidity | 20~85% no condensation | 20~85% no condensation |
Dimensions (W x D x H) | 586 x 445 x 851 mm | 791 x 645 x 861 mm |
Weight | 37 kg | 59.5 kg |
