2-Series

2-Series Soldering Platforms

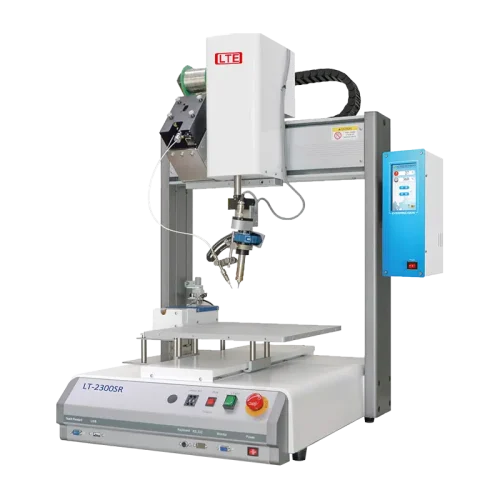

LT-2300SR 2-Series Soldering Platforms - FUWAYTAI Thailand

Features

  • User-Friendly Operation
    Features a simplified mechanical motion design, ideal for high-volume production of single-model series with an intuitive, easy-to-operate interface.

  • Compact & Agile
    The compact footprint and lightweight design meet the demands of lead-free soldering in the electronics industry, allowing for rapid response to production line changes.

  • High Stability & Quality
    Equipped with a stable temperature control system, advanced heaters, and a precision solder-feed system to ensure consistent machine performance and superior output quality.

  • Superior Reliability
    Offers significantly higher stability and consistency compared to manual soldering processes.

  • Versatile Applications
    Ideal for Automotive Electronics, LED/Optoelectronics, 3C Communications, RFID, Medical Devices, and more.

  • Rapid Data Management
    Supports USB quick-access for easy program storage and transfer.

Specifications

Model LT-2300-SR LT-2400-SR LT-2500-SR
Moving Area (X/Y/Z/R)
300 / 300 / 100 mm / ±360°
400 / 400 / 100 mm / ±360°
500 / 500 / 500 mm / ±360°
Working Area (X/Y)
265 / 300 mm
365 / 400 mm
450 / 500 mm
Max. Speed
XY/Z：600 / 320 mm/sec R：720°/sec
Repeatability
±0.01 mm/Axis
Data Memory Capacity
9999 Points/Prog. 100 Programs
Program System
CF Card / USB
Display
Teach Pendant LCD
Drive System/ Stepping Motor
Micro Stepping Motor
Teaching Method
Teach Pendant
Max.Temperature
Max. 450°C
Max. 450°C
Max. 500°C
Temp.Control Power
200 W (Optional : 280W )
Solder Wire Diameters
ø 0.4 ~ 1.2 mm
Solder Feeder System
Stepping Motor
Clean System
Air
Brush
Brush
Air Pressure
5~7 kg/cm²
Power Supply
AC 100V ~ 230V / 450W
Operating Environment Temp.
10~40°C
Operating Environment Humidity
20~85% no condensation
Dimensions
(W x D x H)
724 x 652 x 874 mm
824 x 752 x 874 mm
910 x 752 x 874 mm
Weight
57 kg
65 kg
92 kg
