Auto-Soldering Kits

Modular Soldering Solution for Robotic Integration

FUWAYTAI Automated Soldering Kits provide modular soldering components for integration with robotic arms, SCARA robots, and desktop automation systems. The kit combines temperature control, solder wire feeding, cleaning, and soldering head modules for automated soldering applications.

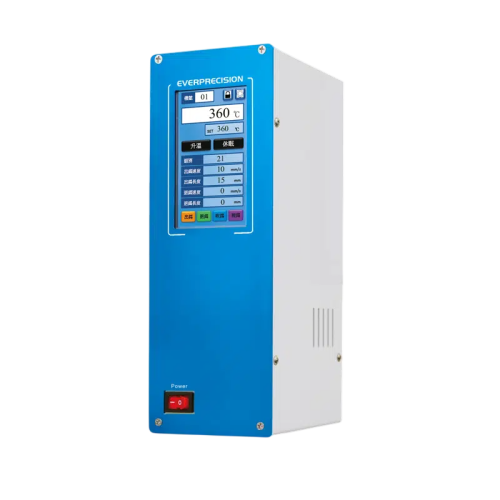

The series includes LT-200-SK and LT-280-SK models with 200 W and 280 W heater capacity. Both models support temperatures up to 450°C and solder wire diameters from 0.4 to 1.2 mm.

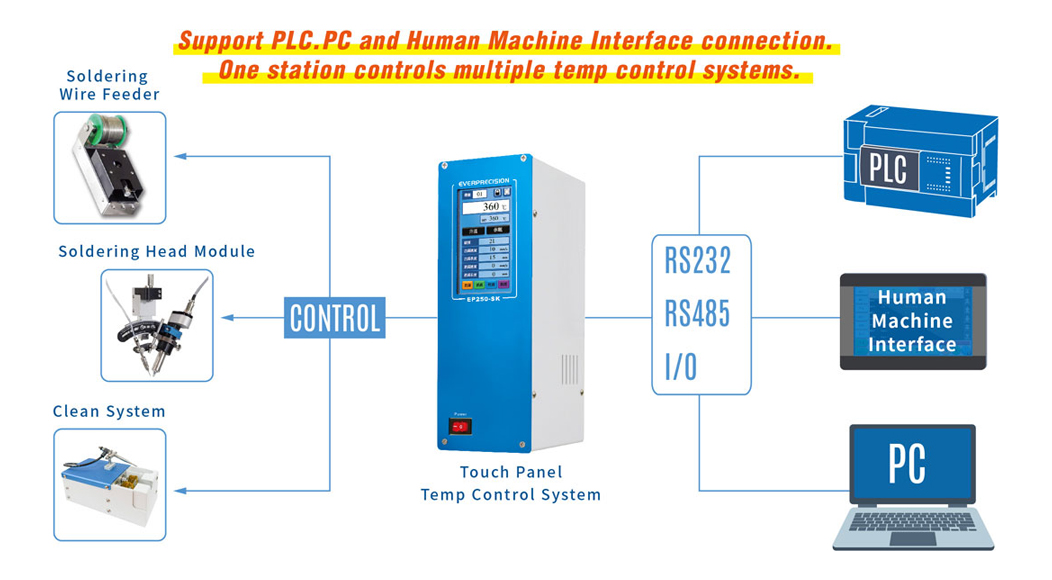

Multiple communication interfaces, including RS232, RS485, I/O, MODBUS, and TCP/IP, support flexible integration with different automation systems and production requirements.

Features

In-Line Soldering Solution

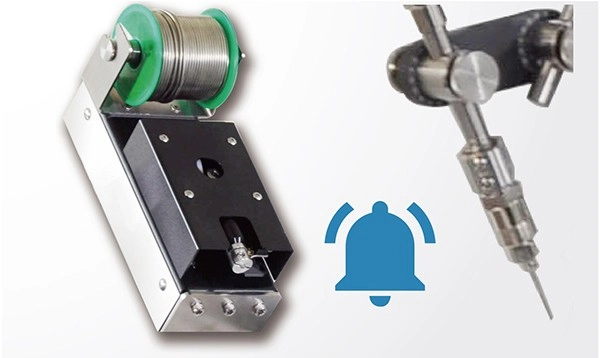

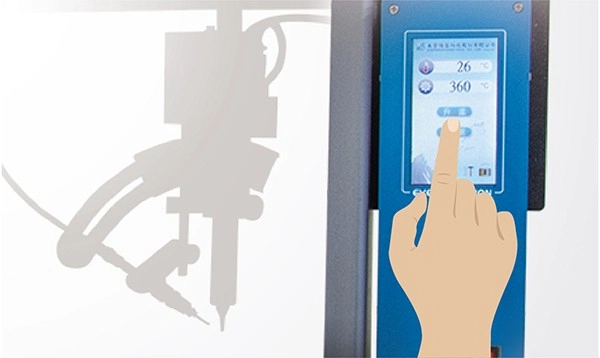

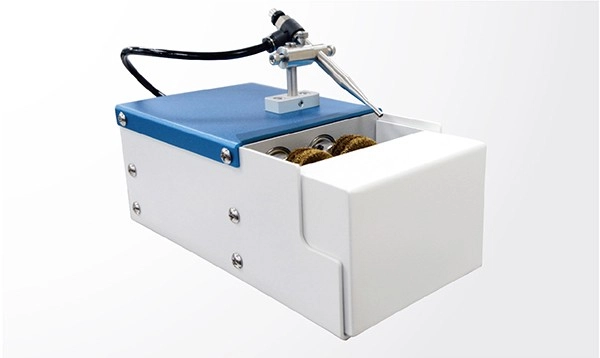

Complete Soldering Kit: Includes temperature control, solder wire feeder, cleaning system, and soldering head module.
Quick Installation & Setup: Designed for convenient installation and straightforward parameter setup.
200 W / 280 W Temperature Control: Available with 200 W or 280 W temperature control systems for different soldering requirements.
Flexible Robotic Integration: Supports integration with robotic arms, SCARA robots, and desktop robots.

Specifications

Model	LT-200-SK	LT-280-SK
Heater Capacity	200W	280W
Max Temperature	450℃
Solder Wire Diameters	ø 0.4 ~ 1.2 mm
Temp Control System Dimensions	273 x 92.5 x 153 mm
Temp Control System Weight	3.5 Kg
Soldering Wire Feeder Dimensions	200 x 80 x 100 mm
Soldering Wire Feeder Weight	1.5 Kg
Clean System Dimensions	235 x 105 x 99.5 mm
Clean System Weight	1.2 Kg
Soldering Head Module Weight	1.0 Kg
Soldering Parameter	Communication 256 units, I/O 16 units
Communicate	RS232 、 RS485 、 I/O、MODBUS、TCP/IP
Clean System	Air / Brush
Air Pressure	5~7 kg/cm²
Power Supply	AC 100V ~ 230V / 450W
Operating Environment Temp.	10~40°C
Operating Environment Humidity	20~85% no condensation
