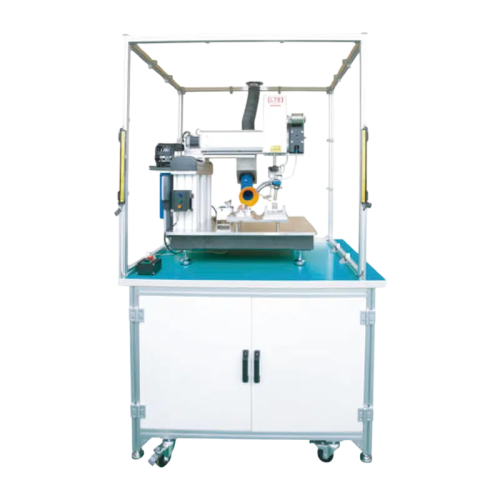

Cantilever Soldering Platforms
Features
- AC Power Input Motor System Optimized for high-speed and high-torque operations, making it ideal for demanding industrial applications.
- Teaching-Based Programming System Features an intuitive command set and a user-friendly “Teach Pendant” interface for quick deployment and ease of use.
- Modular Mounting Brackets Equipped with adjustable mounting fixtures, allowing for versatile configurations to accommodate various workpiece sizes.
- Superior Performance & 3D Interpolation Delivers excellent motion control performance, capable of executing complex arbitrary paths in 3D space.
- Cantilever Mechanism Design The cantilever structure, combined with an I/O control system, enables seamless integration with various production conveyors and automated lines.
Specifications
| Model | LT-3030SB-R | |
|---|---|---|
|
Moving Area (X/Y/Z/R) |
300 / 300 / 100 mm / ±360° |
|
|
Working Area (X/Y/Z) |
265 / 300 / 100 mm |
|
|
Max. Speed |
XY/Z：600 / 320 mm/sec R：720°/sec
|
|
|
Repeatability |
±0.02 mm/Axis |
|
|
Data Memory Capacity |
9999 Points/Prog. 100 Programs |
|
|
Program System |
CF Card / USB |
|
|
Display |
Teach Pendant LCD |
|
|
Teaching Method |
Teach Pendant |
|
|
Drive System/ Stepping Motor |
5-Phase Micro Stepping Motor |
|
|
Motion Mode |
PTP & CP |
|
|
I/O Signal |
8 Inputs / 8 Outputs |
|
|
Max.Temperature |
Max. 500°C |
|
|
Temp.Control Power |
200 W (Optional : 280W ) |
|
|
Solder Wire Diameters |
ø 0.4 ~ 1.2 mm |
|
|
Solder Feeder System |
Stepping Motor |
|
|
Clean System |
Air / Brush |
|
|
Air Pressure |
5~7 kg/cm² |
|
|
Power Supply |
AC 230V / 450W |
|
|
Operating Environment Temp. |
10~40°C |
|
|
Operating Environment Humidity |
20~85% no condensation |
|
|
Dimensions (W x D x H) |
800 x 650 x 385 mm
(Note: These dimensions do not include the custom floor-standing cabinet.) |
|
|
Weight |
75 kg |
|
