Twin-Station Automated Soldering Machine

Dual-Station Soldering for Continuous Production

FUWAYTAI Twin-Station Automated Soldering Machine is designed for efficient and repeatable automated soldering. The dual-switching table allows loading and unloading at one station while soldering continues at the other, helping improve production throughput.

The system supports both point soldering and drag soldering for different process requirements. Flexible programming also allows the machine to handle multiple products and complex soldering tasks.

LT-1602-SR and LT-2702-SR models provide X/Y/Z/R motion, programmable solder feeding, temperature control up to 450°C, and support for solder wire diameters from 0.4 to 1.2 mm.

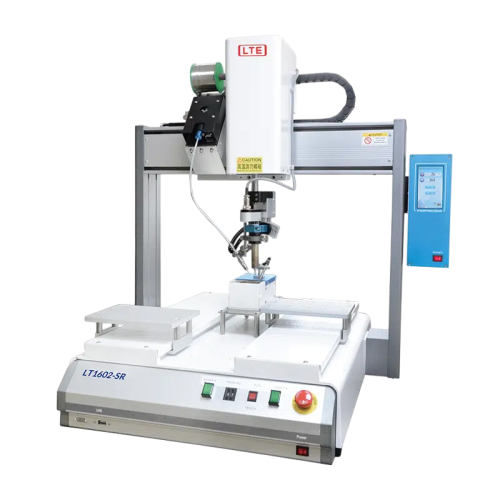

FUWAYTAI LT-1602-SR Twin-Station Automated Soldering Machine

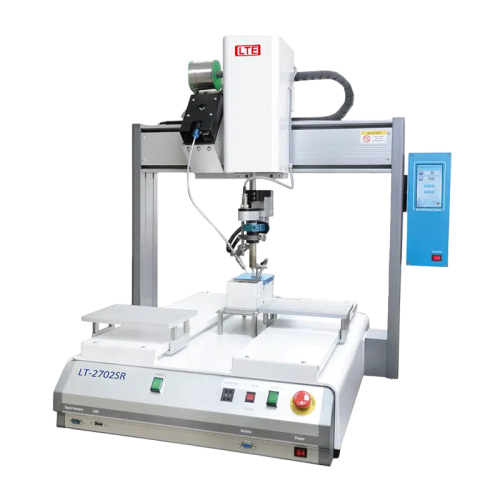

FUWAYTAI LT-2702-SR Twin-Station Automated Soldering Machine

Features

  • Continuous Dual-Station Production:
    Dual switching tables allow loading and unloading without interrupting the soldering process, helping increase production throughput.
  • Flexible Soldering Modes:
    Supports both point soldering and drag soldering to meet different process requirements.
  • Multi-Product Processing:
    Flexible programming supports multiple products and complex automated soldering tasks.
  • USB Program Management:
    USB data transfer supports program backup, system updates, and software upload or download.
  • RoHS-Compliant Manufacturing:
    Designed to support RoHS-compliant manufacturing requirements.

Specifications

Model LT-1602-SR LT-2702-SR
Moving Area (X/Y/Z/R)
620 / 500/100 mm /±360°
400 / 400 / 100 mm / ±360°
Working Area (X/Y)
500(X1 :250, X2:250) / 500
600(X1 :300, X2:300) / 500
Max. Speed
XY/Z：400 / 250 mm/sec R：720°/sec
Repeatability
±0.01 mm/Axis
Data Memory Capacity
9999 Points/Prog. 100 Programs
Program System
CF Card / USB
Display
Teach Pendant LCD
Drive System/ Stepping Motor
Micro Stepping Motor
Teaching Method
Teach Pendant
Max.Temperature
Max. 450°C
Temp.Control Power
200 W (Optional : 280W )
Solder Wire Diameters
ø 0.4 ~ 1.2 mm
Solder Feeder System
Stepping Motor
Clean System
Air / Brush
Air Pressure
5~7 kg/cm²
Power Supply
AC 100V ~ 230V / 450W
Operating Environment Temp.
10~40°C
Operating Environment Humidity
20~85% no condensation
Dimensions
(W x D x H)
1011 x 722 x 861 mm
1130 x 725 x 875 mm
Weight
73 kg
75 kg
