Graco DynaMite Series Supply Pumps
Product Overview
The Graco DynaMite series provides precision fluid delivery solutions for small containers. Engineered to deliver consistent flow from 1-quart (0.95 L) to 5-gallon (19 L) pails, these pumps handle everything from low-viscosity to highly abrasive materials within a compact, rugged design.
Features
- Precise & Consistent Flow Specially designed for small container applications (1 quart to 1 gallons), ensuring accurate and reliable fluid output across various industrial processes.
- Elite High-Wear Resistance Features an extensive product life cycle, maintaining peak performance even in heavy-duty applications involving highly viscous and abrasive materials.
- Compact & Lightweight Design With a minimum weight of only 8.4 kg, these extruders are suitably designed to minimize floor space and allow for greater installation flexibility.
- Built Tough for Rugged Conditions Constructed to withstand harsh environments; capable of extruding viscous materials directly from their original pails to streamline production.
Selection Guide

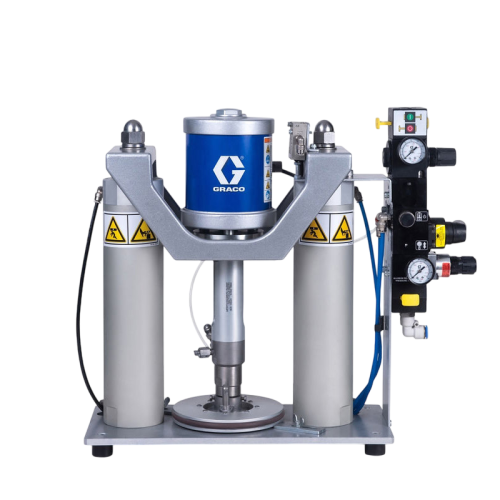

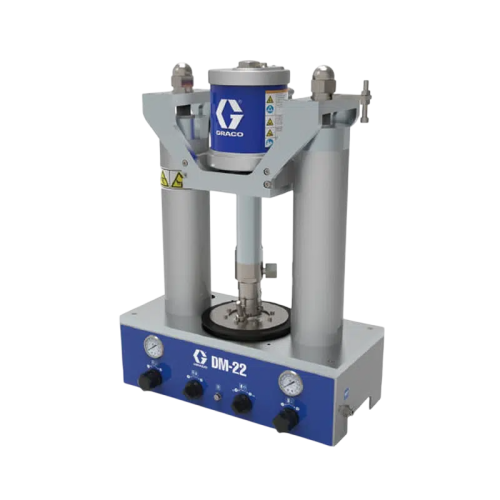

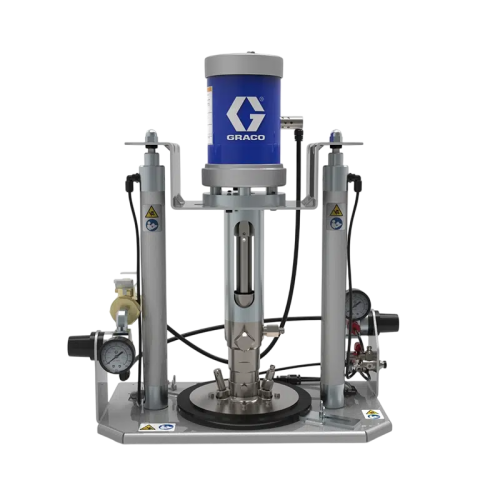

- DynaMite 22: The ideal solution for high-viscosity and abrasive materials, delivering precise flow from 1-gallon pails.

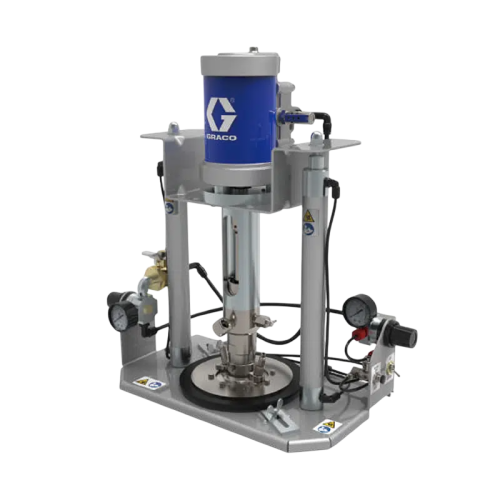

- DynaMite 190: Perfect for pumping low to medium viscosity materials from 1-quart or 1-gallon containers with a lightweight yet durable build.
Specifications
| Model | DynaMite 22 (600cc) | DynaMite 22 (1 gl) | DynaMite 190 |
|---|---|---|---|
|
Dimensions (W x D x H) |
360 mm x 300 mm x 600 mm(Lowered) ~ 900 mm(Raised) |
438 mm x 202 mm x 570 mm(Lowered) ~ 820 mm(Raised) |
432 mm x 210 mm x 502 mm(Lowered) ~ 730 mm(Raised) |
|
Weight |
36 kg |
28 kg |
8.4 kg |
|
Material Container Volume |
0.6 L |
3.785 L (1 Gal) |
0.95 L ~ 3.785 L
(1 Qt ~ 1 Gal) |
|
Container Type |
Pail |
Pail |
Pail |
|
Material Type |
Abrasive material |
Abrasive material |
Non abrasive material |
|
Maximum Fluid Viscosity |
5,000 – 1,000,000 cps |
5,000 – 1,000,000 cps |
600,000 cps |
|
Volume per Stroke |
5.0 cc (0.17 oz) |
5.0 cc (0.17 oz) |
5.0 cc (0.17 oz) |
|
Recommended pump speed for continuous operation |
40 cycles per minutes (cpm) |
40 cycles per minutes (cpm) |
40 cycles per minutes (cpm) |
|
Maximum Air Inlet Pressure |
100 psi |
100 psi |
100 psi |
|
Maximum Fluid Output Pressure |
2200 psi |
2200 psi |
1200 psi |
|
Air Inlet Size |
８mm |
８mm |
1/4″ npt (f) |
|
Air Inlet Thread Gender |
None |
Female |
Female |
|
Fluid Outlet Size |
1/4″ npt (f) |
1/4″ npt (f) |
1/4″ npt (f) |
|
Maximum Operating Temperature |
60 °C |
60 °C |
60 °C |
|
Pump Ratio |
22:1 |
22:1 |
19:1 |
|
Seal Material |
Tivar Ceram-P |
Tivar Ceram-P |
Tivar Ceram-P |
|
Pump Type |
Pneumatic |
Pneumatic |
Pneumatic |
|
Wetted Material |
304 Stainless Steel, PTFE, Fluoroelastomer, PEEK |
304 Stainless Steel, 17-4 PH Stainless Steel, PTFE, Fluroelastomer, PEEK |
304 Stainless Steel, PTFE, Fluoroelastomer, PEEK |
