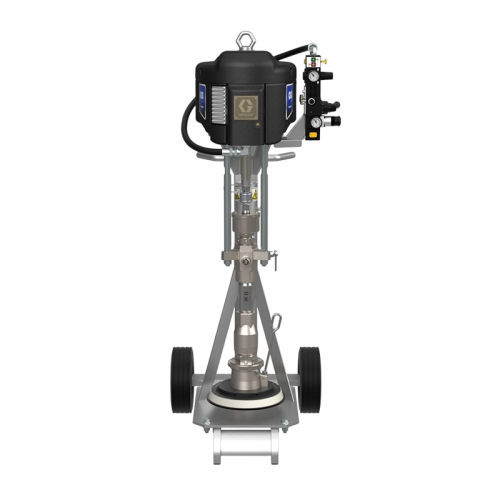

Graco S20C Pneumatic Supply System
Reliable Material Supply for High-Viscosity Adhesives & Sealants
FUWAYTAI provides the Graco S20C pneumatic supply system in Thailand for reliable material feeding in industrial dispensing applications. The cart-mounted system is designed to transfer single-component adhesives, sealants, and medium- to high-viscosity materials directly from 20-liter (5-gallon) pails.
The S20C combines a compact ram system with Graco NXT air motor technology to provide stable material flow and high-pressure delivery. Its mobile cart design allows easier relocation between production areas while supporting efficient pail replacement and reduced production downtime.
The system can be integrated with dispensing systems, dispensing machines, and other fluid control equipment to provide a stable material supply for automated bonding, sealing, potting, and assembly processes.
Product Overview
The Graco S20C is a compact, cart-mounted material supply system designed for 20-liter (5-gallon) pails. It provides consistent delivery of single-component adhesives, sealants, and high-viscosity materials to metering and dispensing equipment.
Its pneumatic ram and high-pressure pump design support stable material feeding while allowing fast pail replacement, easy mobility, and efficient maintenance.
Features
- Compact Proven Technology
Uses Graco NXT air motor technology in a compact 20-liter (5-gallon) pail system. - Mobile Cart Design
Integrated cart construction allows easier relocation between production areas. - Intuitive Controls
Provides essential production information and convenient system operation. - Rapid Material Changeover
Quick pail replacement helps reduce material changeover time and production downtime. - Simplified Maintenance
Replaceable platen wipers and service-friendly components help reduce maintenance time. - In-Line Pump Servicing
Quick-disconnect components allow servicing without removing the pump from the ram. - High Production Uptime
Durable components support reliable operation and reduce maintenance frequency.
Specifications
| Model | S20C |
|---|---|
Dimensions (W x D x H) | 562 mm x 661 mm x 1651 mm(min.) ~ 2286 mm(max.) |
Material Container Volume | 20 L (5 Gal) |
Container Type | Pail |
Maximum Air Inlet Pressure | 125 psi / 8.79 kg/cm² |
Maximum Fluid Pressure | 6300 psi |
Maximum Working Pressure | 6396 psi |
Maximum Operating Temperature | 49 °C |
Pump Ratio | 63 : 1 |
Platen Material | Carbon Steel |
Ram Material | Carbon Steel |
Seal Material | Nitrile |
Pump Type | Priming Piston |
Wetted Material | Alloy Steel, Stainless Steel, Acetal, Carbon-Filled PTFE, Carbon Steel, Ductile Iron, Electroless Nickel Plating, Zinc Plating, Chrome Plating, High Molecular Weight Polyethylene, Polyurethane, Nitrile Rubber, Polyethylene, Zinc-Plated Carbon Steel, Buna-N |
