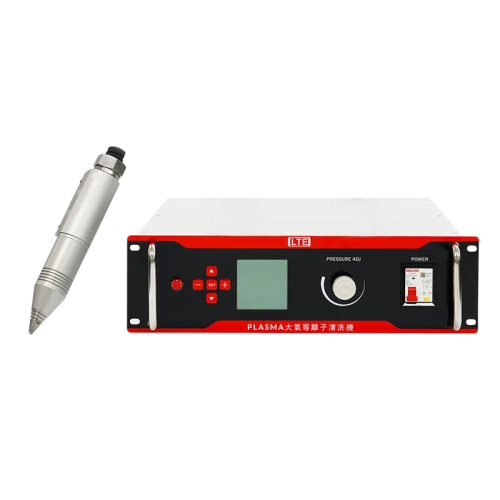

LTE-KZAP1010 Direct-Jet Plasma Surface Treater
Description
Plasma surface treatment equipment is primarily used for surface modification and enhancing surface energy. It is highly effective for improving the surface bonding of materials such as ABS, PP, PC, PE, PS, plastics, rubber, glass, fiberglass, polymers, and metals. The impact on the printing industry is particularly significant. This system integrates a high-frequency power control system, pressure protection system, transmission system, and alarm system. It delivers stable performance during operation, providing superior results for bonding, printing, and coating processes, often increasing effectiveness by several times or more.
Features
- Neutral Plasma Stream : The ejected plasma stream is neutral and non-conductive, allowing for safe surface treatment on various polymers, metals, glass, rubber, and PCB circuit boards.
- Enhanced Bonding Strength : Significantly increases the bonding strength of plastic parts. For instance, treatment of PP materials can yield multi-fold improvements, with most plastic parts reaching a surface energy of 50 dynes or more after processing.
- Stable and Long-Lasting Results : Surface properties achieved through plasma treatment remain stable and effective over an extended period.
- Eco-Friendly Dry Process : A dry treatment method that is pollution-free and produces no wastewater, fully complying with environmental protection requirements.
- In-Line Production Integration : Capable of operating directly on high-speed production lines to reduce overall operational costs.
Specifications
| Model | LTE-KZAP1010 (Direct-Jet) |
|---|---|
|
Nozzle Size |
2 / 4 / 6 / 8 mm |
|
Treatment Width |
2 ~ 8 mm (Optional) |
|
Treatment Height |
5 ~ 15 mm |
|
Dimensions (W x D x H) |
428 x 357 x 120 mm |
|

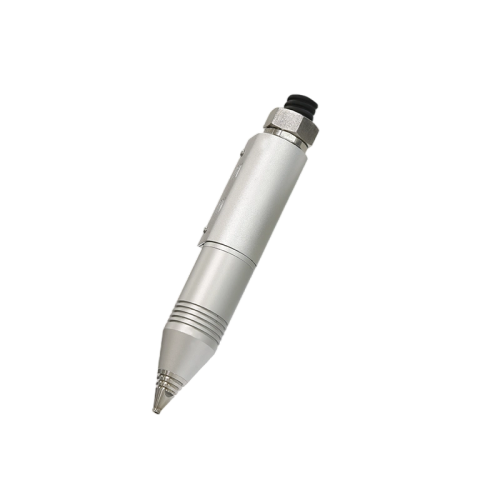

Spray Gun Weight |
2.0 kg |
|

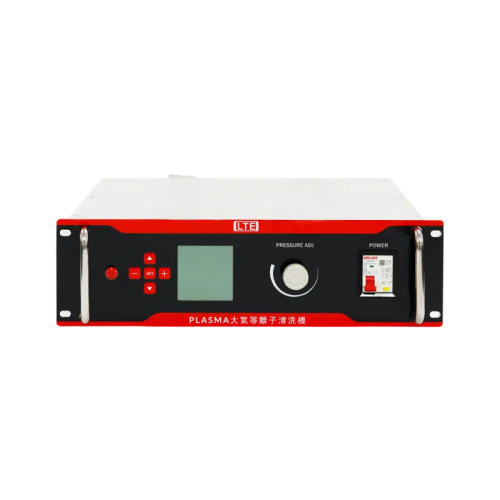

Main Unit Weight |
9.5 kg |
|
Total Weight |
11.5 kg |
|
Input Power |
AC 220V / 50~60Hz |
|
Max Output Power |
650 W |
|
Process Gas Pressure |
0.1MPa ~ 0.2MPa (1kg ~ 2kg) |
|
Gas Requirements |
Dry gas source, oil-free and water-free |
|
External Control Mode |
Start/Stop I/O, RS485 (Optional) |
