Vision Twin-Station – Automated Screw Fastening Machine

Dual-Station Automated Screw Fastening for Flexible Production

The FUWAYTAI Vision Twin-Station Automated Screw Fastening Machine is designed for flexible and efficient automated assembly. Its dual-station configuration allows two different products or workpieces to be processed on a single machine.

The system combines high-precision optical scale positioning, adjustable torque control, and intelligent fastening inspection. It can detect missing screws, floating screws, and stripped threads while maintaining consistent fastening quality.

With a user-friendly HMI, multi-process capability, and optional servo screwdriver, the Vision Twin-Station supports electronics, automotive components, electrical products, and other industrial assembly applications.

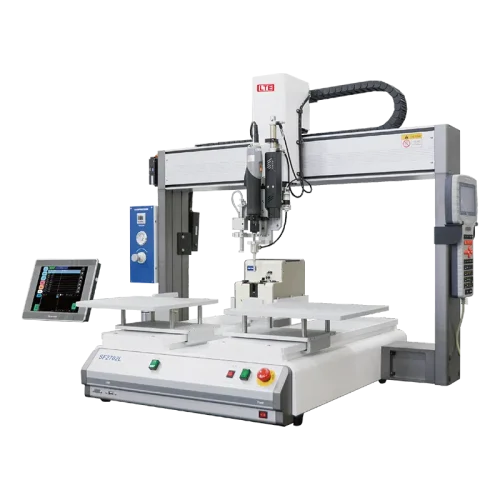

FUWAYTAI LT-SF2702L Vision Twin-Station Automated Screw Fastening Machine

Features

  • Dual-Station & Dual-Product Support: Supports two different products or workpieces on a single machine for flexible production.
  • Intelligent Fastening Inspection: Detects missing screws, floating screws, and stripped threads during the fastening process.
  • Torque Control & Monitoring: Adjustable torque with torque arrival detection and real-time warning functions helps maintain consistent fastening quality.
  • High-Precision Positioning: Optical scale feedback provides accurate and repeatable positioning for automated screw fastening.
  • User-Friendly HMI Programming: An intuitive Human-Machine Interface enables easy program editing and efficient machine operation.
  • Multi-Process Integration: Multiple fastening processes can be completed on a single machine to improve production efficiency.
  • Optional Servo Screwdriver: Supports an optional servo screwdriver for enhanced torque and speed control.

Specifications

Model LT-SF2702L
Moving Area X/Y/Z
700 / 500 / 100 mm
Working Area X/Y
500 / 500 mm
Moving Speed XY/Z
1000 / 350 mm/sec
Repeatability
±0.01 mm/Axis
Motor System
Linear Motor
Transmission System
Precision Slide Guide (MIT)
Display / Teaching Mode
Touch Screen Human Machine Interface
Electric Screwdriver
Brushless DC Voltage
Nozzle Specification
< 9mm (Maximum Diameter)
Screw Length
< 18mm (Maximum Diameter)
Screw Feeder System
Disc-Type Screw Feeder M1.2 – M5.0
Air Pressure
5~7 kg/cm²
Data Recording Capability
9999 points/prog. 100 programs
Data Storage Method
SD Card, USB
Dimensions
(W x D x H)
960 x 752 x 868 mm
Weight
97 kg
Input Power
AC 100~240 V / 450W
Operating Environment Temperature
10~40°C
Operating Environment Humidity
20~85% no condensation
