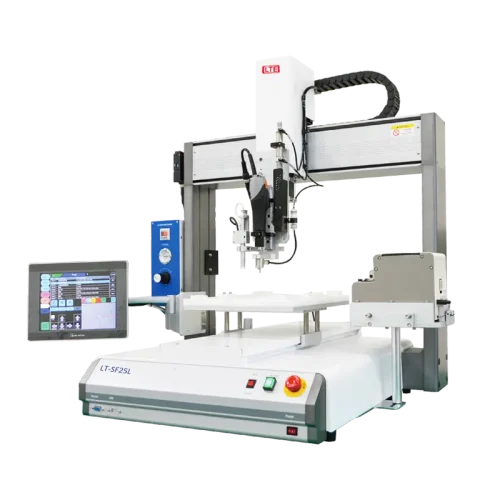

Vision Auto Screw Fastening Platforms
Features
- Intelligent Fastening Detection: Features an intelligent detection system for missing screws, floating screws, and stripped threads; supports high-precision fastening for workpieces at varying heights.
- Adjustable Torque Control: Equipped with an electric screwdriver that allows precise torque adjustment, featuring torque arrival detection and real-time warning alerts.
- Linear Motor & Optical Scale: Driven by a Linear Motor for rapid movement, with Optical Scale feedback for real-time coordinate reporting and superior positioning accuracy.
- User-Friendly HMI: Equipped with an intuitive Human-Machine Interface (HMI) for streamlined and efficient program editing.
Specifications
| Model | LT-SF25L |
|---|---|
|
Moving Area X/Y/Z |
500 / 500 / 100 mm |
|
Working Area X/Y |
480 / 500 mm |
|
Moving Speed XY/Z |
1000 / 350 mm/sec |
|
Repeatability |
±0.01 mm/Axis |
|
Motor System |
Linear Motor |
|
Transmission System |
Precision Slide Guide (MIT) |
|
Display / Teaching Mode |
Touch Screen Human Machine Interface |
|
Electric Screwdriver |
Brushless DC Voltage |
|
Nozzle Specification |
< 9mm (Maximum Diameter) |
|
Screw Length |
< 18mm (Maximum Diameter) |
|
Screw Feeder System |
Disc-Type Screw Feeder M1.2 – M5.0 |
|
Air Pressure |
5~7 kg/cm² |
|
Data Recording Capability |
9999 points/prog. 100 programs |
|
Data Storage Method |
SD Card, USB |
|
Dimensions (W x D x H) |
740 x 752 x 868 mm |
|
Weight |
68 kg |
|
Input Power |
AC 100~240 V / 450W |
|
Operating Environment Temperature |
10~40°C |
|
Operating Environment Humidity |
20~85% no condensation |
