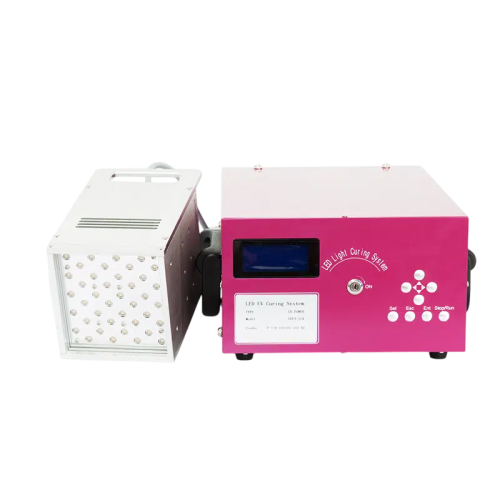

MANYCURE 100 LED Area UV Curing System
Description
The MANYCURE 100 LED Area UV Curing System utilizes advanced LED technology to provide high-intensity 365nm ultraviolet light for large-area applications. Unlike conventional light sources, this system eliminates thermal radiation and the harmful effects of deep UV light on components, ensuring the safety of heat-sensitive parts. Featuring a long service life of approximately 20,000 hours and a power consumption of only 250W, the mercury-free MANYCURE100 is a high-performance, energy-saving, and environmentally friendly industrial solution.
Features
- Ultra-High Output UVA LED Features high-intensity UVA LED technology, primarily utilizing the 365nm wavelength to ensure superior curing performance.
- Extended Lifespan & High Stability Offers a long service life of up to 20,000 hours with exceptional output stability, significantly minimizing maintenance overhead.
- Extra-Large Irradiation Area Specifically designed for large-scale curing, providing uniform and extensive ultraviolet coverage across the target surface.
- Minimized Thermal Impact The low-heat emission light source design effectively prevents thermal damage to irradiated substrates, keeping heat effects to a minimum.
- Instant ON/OFF & Eco-Friendly Features instant switching capability with no warm-up required; it is completely mercury-free and highly energy-efficient.
- Versatile Process Applications Widely utilized in UV adhesive curing, UV ink drying, the optoelectronics industry, and LCD UV exposure processes
Specifications
| Model | MANYCURE 100 | ||
|---|---|---|---|
Power Consumption | < 50VA | ||
UV Heads | Maximum Irradiation Area | ||
Power Setting Range | 0 ~ 100% | ||
Max. Intensity | 300 mW / cm2 | ||
Cooling Method | Natural Convection or Forced Air Cooling | ||
Drive Mode | Optional Foot Switch/Manual Panel, PC Connection, or Timer Control. | ||
Input Power | AC 220V / 50 ~ 60Hz | ||
Dimensions (W x D x H) | 232 x 330 x 135 mm | ||
Weight | 5.4 kg | ||
Storage Temperature | -15 ~ 65°C | ||
Operating Environment Temperature | 10~40°C | ||
Operating Environment Humidity | 20~85% no condensation | ||
