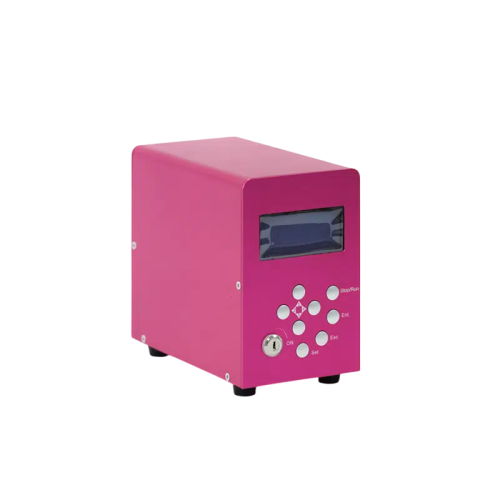

WELLCURE 400 LED Spot UV Curing System
Description
The WELLCURE 400 LED Spot UV Curing System utilizes advanced LED technology to deliver precise 365nm ultraviolet light. Unlike traditional mercury lamps, this system eliminates thermal radiation and the harmful effects of deep UV light on irradiated components, ensuring the safety of heat-sensitive parts. The WELLCURE400 boasts a long operational lifespan of approximately 25,000 hours and employs a cable-output design to significantly reduce consumable costs. With a power consumption of only about 50W and a mercury-free design, it stands as a high-performance, energy-saving, and environmentally friendly solution for industrial spot curing.
Features
- Ultra-High Output UVA LED: Features high-intensity UV LED technology in the UVA spectrum, primarily utilizing the 365nm wavelength for optimal curing performance.
- Versatile Spot Heads: Offers a wide selection of spot radiation heads with diameters of 2mm, 4mm, 6mm, 8mm, and 10mm to suit various precision requirements.
- Minimal Thermal Radiation: Engineered to deliver cold light curing, significantly reducing heat transfer to the substrate and protecting heat-sensitive components.
- Flexible Process Application: Highly adaptable to different manufacturing processes; users can opt for external extension cables based on specific onsite integration needs.
- Advanced Fan Cooling System: Features a unique forced-air cooling design that rapidly dissipates heat from the LED chips, ensuring stable power output and significantly extending the LED’s operational lifespan.
Specifications
| Model | WELLCURE 400 | ||
|---|---|---|---|
Power Consumption | < 50VA | ||
UV Heads | Independently control up to 4 LED spot heads | ||
Power Setting Range | 0 ~ 100% | ||
Max. Intensity | 4000 mW / cm2 | ||
Cooling Method | Aluminum housing natural convection + Forced air cooling | ||
Drive Mode | Auto, Manual, Pulse | ||
Input Power | AC 100V ~ 240V / 50 ~ 60Hz | ||
Dimensions (W x D x H) | 145 x 80 x 125 mm | ||
Weight | 3.0 kg | ||
Storage Temperature | -15 ~ 65°C | ||
Operating Environment Temperature | 10~40°C | ||
Operating Environment Humidity | 20~85% no condensation | ||
