LTE-DS Series Precision Volumetric Dispensing Controllers
Description
The LTE-DS Series Precision Volumetric Dispensing Controllers are high-performance digital solutions designed for accuracy. This series features advanced air and vacuum pressure calibration, combined with time compensation technology to ensure highly consistent dispensing volumes regardless of environmental or material changes. The system provides versatile dispensing modes for diverse applications and supports I/O multi-device series connection, parameter locking, and inlet air pressure detection. The DS series is the ideal choice for enhancing precision, preventing human error, and maximizing production efficiency.
Features
- Precision
Output Air and Vacuum Pressure Calibration Equipped with calibration functions for both output air pressure and vacuum pressure to ensure high-accuracy performance.
Time Compensation Technology Features time compensation functionality to maintain consistent dispensing volumes by offsetting pressure variations.
- Convenience
Versatile Dispensing Modes Offers multiple dispensing modes suitable for a wide range of industrial applications and fluid types.
Full Digital Display Features a full digital interface for intuitive, simple, and user-friendly operation and monitoring.
- User-Friendly Design
- Material Life Timer Allows users to set a material usage limit to prevent degradation, curing, or changes in chemical properties.
- Auto-Purge Function Includes a programmable automatic timed purging function to prevent dispensing tips and needles from clogging during downtime.
- I/O Connectivity Equipped with I/O functionality, supporting multi-unit series connection for seamless integration into automated systems.
- Parameter Lock Function Features a secure parameter lock to prevent unauthorized setting changes or accidental human error.
- Inlet Air Pressure Detection Monitors real-time inlet air pressure to prevent dispensing anomalies caused by fluctuations in the factory air supply.
Specifications

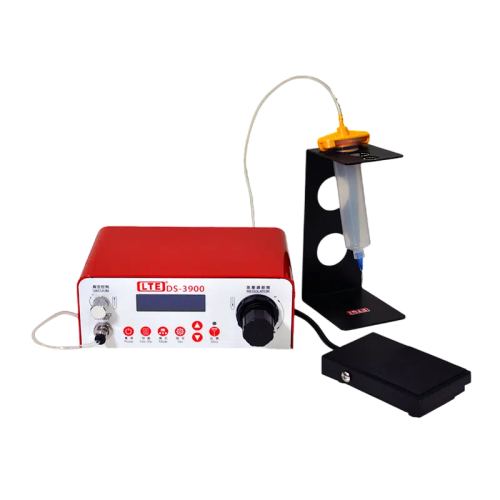

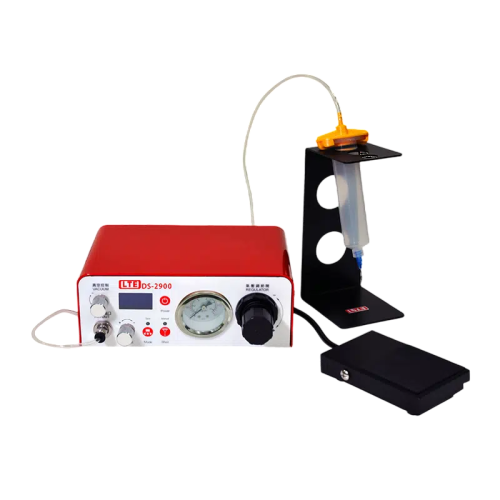

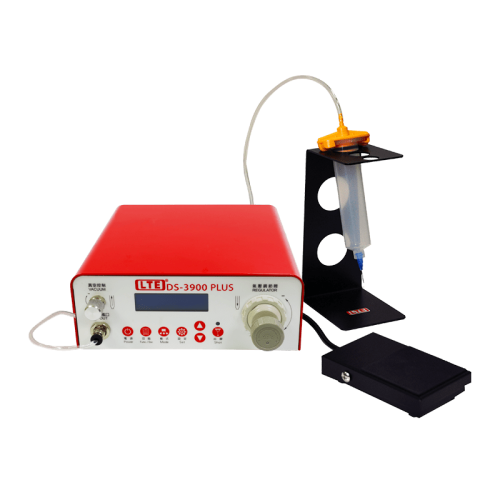

| Model | DS-2900 | DS-3900 | DS-3900 PLUS |
|---|---|---|---|
|
Pressure Range |
0 – 100 psi |
||
|
Pressure Display |
Analog |
Digital |
Digital |
|
Internal Tank |
NO |
NO |
YES |
|
Timer Range |
0.01 ~ 9999 sec |
||
|
Dispense Modes |
PURGE / TIMED |
PURGE / TEACH / TIMED / TIME+ / INT |
PURGE / TEACH / TIMED / TIME+ / INT |
|
Dispense Rate |
600 cycles/min |
||
|
Dimensions (L x W x H) |
185 x 195 x 76 mm |
185 x 195 x 76 mm |
192 x 278 x 76 mm |
|
Weight |
0.9 kg |
0.9 kg |
1.5 kg |
|
Input Power |
AC 100~240 V / 18W |
||
|
Operating Environment Temperature |
10~40°C |
||
|
Operating Environment Humidity |
20~85% no condensation |
||
