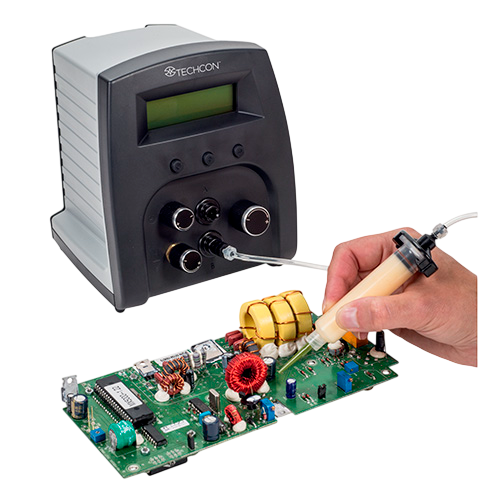

Techcon TS350 Series Digital Dispenser
Description
The TS350 Series Digital Fluid Dispenser/Controller is equipped with a digital timer, pressure, and vacuum read-out on a large LCD screen. The user-friendly firmware provides the option of programming up to 10 varied, sequenced, or individual shots. This system has a user-programmable manual (purge) and automatic dispense cycle settings (program and time), and features a “Teach Mode” for determining the dispensing time required when the dispensing output is unknown.
Two operating pressures are available: TS350 (1 – 100 psi / 0.07 – 6.9 bar for general applications), and TS355 (0 – 15 psi / 0.07 – 1.0 bar for specific low-viscosity applications).
Features
- Global Compatibility : Equipped with a universal power supply and snap-on plug for seamless worldwide use.
- Programmable Cycle Settings : User-programmable manual purge and automatic dispense cycle settings (including both program and time modes).
- Memory Storage : Features 10 programmable memories for storing and recalling the most frequently used dispensing cycle timings.
- Teach Mode : Includes an integrated “Teach Mode” to accurately determine the required dispensing time when the specific output volume is unknown.
- High-Precision Timing : Offers digital timing ranges from 0.008 to 60.000 seconds with an exceptional ± 0.001% timing repeat tolerance.
- Digital Monitoring : Provides real-time digital read-outs for both pressure and vacuum levels, with the ability to toggle pressure display between psi and bar.
- Advanced Waste Control : Features adjustable vacuum-driven “suck back” to effectively control material “tailing” and minimize fluid waste.
- Stackable Workspace Design : The stable housing design allows multiple TS-350/355 units to be stacked and fastened together to conserve valuable workspace.
- Ergonomic Interface : Equipped with tactile-responsive programming buttons and large, clearly marked knobs for intuitive air pressure and vacuum control.
- High-Visibility Display : Features a high-visibility, 20 x 4 backlit LCD display panel for clear reading of parameters in any environment.

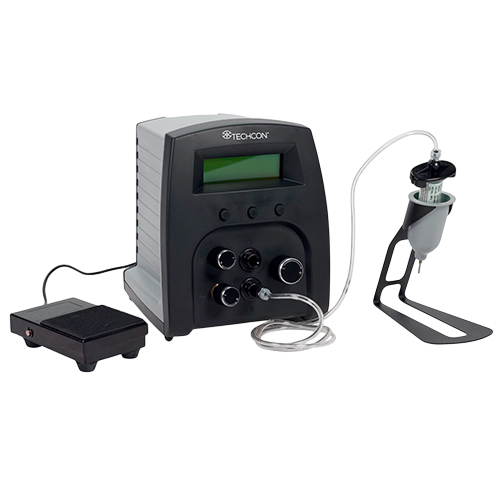

- Comprehensive Accessories Kit : Included accessories: Universal power adapter, foot switch, syringe barrel stand, 10cc receiver head, air hose with fittings, cable holder, and sample dispensing tips.
Specifications
| Model | TS350 | TS355 |
|---|---|---|
|
Dimensions (W x L x H) |
152 x 195 x 183 mm |
152 x 195 x 183 mm |
|
Weight |
1.2 kg |
1.2 kg |
|
Pressure Range |
0 to 100psi (0 to 6.9bar) |
0 to 15psi (0 to 1.0bar) |
|
Cycle Rate |
1200 cycles/minute |
1200 cycles/minute |
|
Timing Range |
0.008 – 60.000 seconds |
0.008 – 60.000 seconds |
|
Timing Repeat Tolerance |
± 0.001% |
± 0.001% |
|
Input Voltage |
AC 100 – 240 |
AC 100 – 240 |
|
Cycle Modes |
Timed, Purge, Teach, Int. |
Timed, Purge, Teach, Int. |
|
Certification |
CE, TUV-GS and NRTL |
CE, TUV-GS and NRTL |
