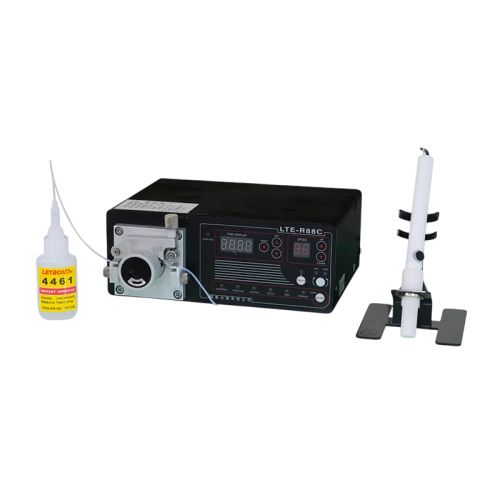

LTE-R88C Peristaltic Dispensing Pump
Precision Low-Viscosity Dispensing with Peristaltic Control
The FUWAYTAI LTE-R88C Peristaltic Dispensing Pump is designed for precise dispensing of low-viscosity fluids below 10,000 cP, including cyanoacrylates, solvents, and medical reagents.
A precision stepper motor drives the rotary mechanism to compress a specialized Teflon tube, providing controlled fluid delivery without direct contact between the fluid and the pump mechanism.
The digital control panel provides 100-channel memory for dispensing settings, while the rotary head and tubing can be removed easily for maintenance. The LTE-R88C is suitable for medical, electronics, and IT assembly applications. Explore FUWAYTAI’s complete range of dispensing controllers for industrial fluid-control applications.
Features
- Designed for Low-Viscosity Fluids: Suitable for fluids below 10,000 cP, including cyanoacrylates, solvents, and other low-viscosity materials.
- 100-Channel Memory: The digital control panel stores up to 100 sets of dispensing parameters for different production requirements.
- Precision Stepper Motor Control: A precision stepper motor drives the peristaltic mechanism for controlled fluid delivery.
- Easy Tube & Rotary Head Removal: The rotary head and dispensing tube can be removed easily for convenient maintenance and replacement.
- Multiple Dispensing Modes: Supports Manual, Single, Cycle, Snuff-Back, Continuous, and Program modes for different dispensing processes.
Specifications
| Model | LTE-R88C | ||
|---|---|---|---|
Control System | Rotary Tubing System | ||
Dispensing Flow Rate | 0.01 ~ 6 ml/min ; 0.1 ~ 20 ml/min | ||
Dispensing Pressure | ≥ 0.5 kg/cm² | ||
Feed Direction | Clockwise / Counterclockwise, switchable | ||
Motor Speed | Max. 120 rpm | ||
Dispensing Modes | Manual, Single, Cycle, Snuff-back, Continuous, Program | ||
Dimensions (L x W x H) | 210 x 150 x 80 mm | ||
Weight | 3.5 kg | ||
Input Power | AC 100~240 V | ||
