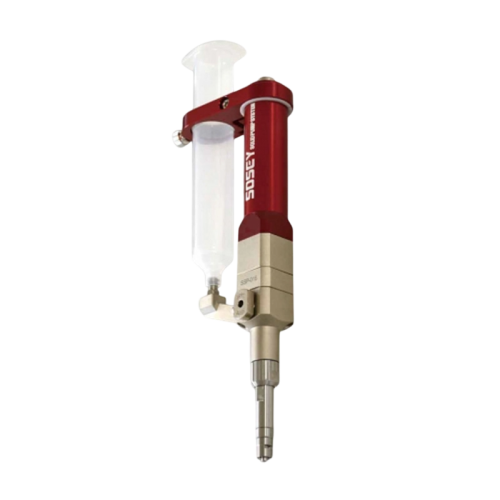

Single Solid Pump System - SOSEY SSP Series

Description

The SSP Series is an ultra-precision single-liquid measuring metered dispenser mounted with the SOSEY-SOLID® pump system. It is designed for stable dispensing of super small amounts, featuring a compact and extremely light body that is easy to incorporate onto tabletop robots or automated lines. The system is perfect for low-to-high gravity and low-to-high viscosity materials.

Features

Ultra-precision Measuring / Metering : Equipped with the unique SOSEY-SOLID® pump system capable of stable dispensing for super small amounts as low as 0.015 ml.
Wide Range of Material Compatibility : Perfect for low-to-high gravity and low-to-high viscosity materials, including adhesives, conductive paste, thermal grease, UV resin, and wax paste.
High Precision and Stability : Achieves a dispensing repeatability precision of ±1% (depending on the material).
Simple and Immediate Operation : Comes with a simple operation controller and can be used immediately upon setup.
Lightweight and Compact Design : The extremely light body (starting from 400g) makes it easy to incorporate onto tabletop robots.
Flexible Dispensing Modes : Supports multiple operation modes, including Timer dispensing, Continuous dispensing, and Metering dispensing.
Parameter Memory Function : Features 15 pattern memories that can be selected via external I/O.

Specifications

Model	SSP-015	SSP-050	SSP-150	SSP-500	SSP-1000
Dimensions (L x W x H)	231.5 mm x 27 mm x 33 mm	231.5 mm x 27 mm x 33 mm	280.0 mm x 29 mm x 35 mm	280.0 mm x 29 mm x 35 mm	310.0 mm x 29 mm x 35 mm
Weight	400 g	400 g	600 g	600 g	700 g
Pump Size	0.015 ml/rev	0.050 ml/rev	0.150 ml/rev	0.450 ml/rev	0.900 ml/rev
Maximum discharge rate (theoretical value)	0.03 ml/s	0.10 ml/s	0.30 ml/s	0.90 ml/s	1.80 ml/s
Minimum discharge rate (theoretical value)	0.0005 ml/s	0.0017 ml/s	0.0050 ml/s	0.0150 ml/s	0.0300 ml/s
Motor Speed	Up to 120 rpm (Usable speed differs by viscosity).
Dispensing Precision	± 1% (Depends on material)
Material Supply Method	PT 1/4 or various cylinder cartridges.
Material Dispensing Method	Luer lock (standard) or special nozzles (optional).
Supply Pressure	0 ~ 0.6 MPa
Usable Temperature	Up to 50°C
Material Viscosity	More than 200,000 mPa-s.
Wetted Parts	SUS303F / UHHW PE / FFKM
Power Supply	Single phase AC 100～240 V，50/60 Hz
Power Consumption	100W
Pattern Memories	15 patterns (Selectable by external I/O).
Operation Mode	Timer dispensing / Continuous dispensing / Metering dispensing.
Air Supply	φ6 air supply. Capable of adjusting air pressurization in the range of 0–0.6 MPa with built-in regulator
