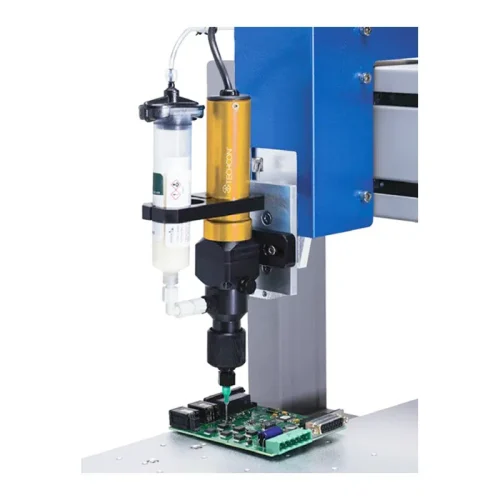

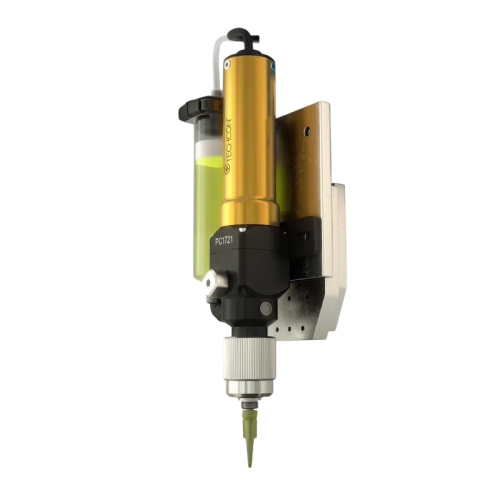

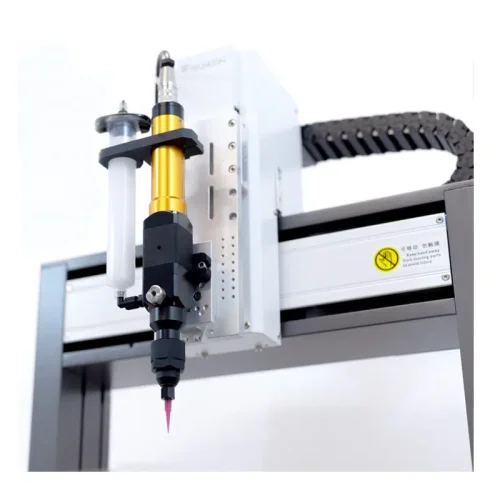

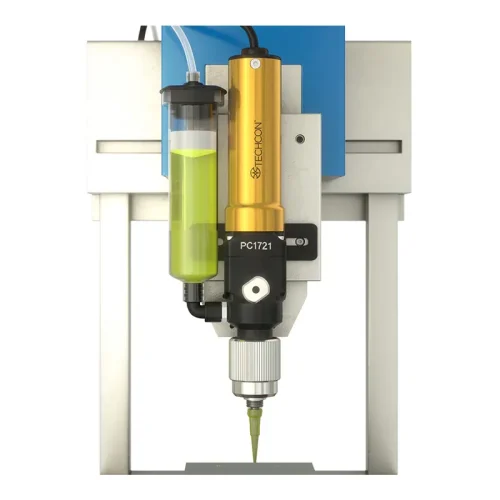

TS8100 Series Progressive Cavity (PC) Pump
Description
The Techcon TS8100 Series is a high-performance, continuously volumetric dispensing pump engineered with advanced Progressive Cavity (PC) technology. Designed for maximum versatility, it effectively handles a wide range of industrial fluids, from low-viscosity coatings to high-viscosity greases.
At the heart of the system is a specialized stator and rotor assembly that works in tandem to provide a highly consistent dispensing output. As the rotor turns, it moves fluid through tightly sealed chambers within the stator, creating a precise volumetric flow that preserves the original shape and integrity of the material without causing shear or damage. This unique dispensing mechanism allows the TS8100 to achieve an industry-leading accuracy and repeatability of ±1%.
Available in multiple configurations to support a broad spectrum of flow rates, the TS8100 Series provides a reliable and scalable solution for the most demanding automated manufacturing environments.
Features
- Volumetric, Positive Displacement: Ensures precise fluid delivery based on mechanical displacement, remaining unaffected by fluctuations in fluid pressure.
- Accurate and Repeatable up to ± 1%: Delivers exceptional process stability and consistency to meet the most stringent industrial standards.
- No Dripping with Any Viscosity Fluid: The unique geometric sealing of the PC pump ensures clean cut-offs, preventing drips even with low-viscosity materials.
- Compatible with Abrasive Materials: Engineered with high-durability components to withstand the wear and tear of abrasive fluids, extending service life.
- Does Not Damage or Break Fillers: The gentle conveying mechanism protects the integrity of delicate fillers, such as conductive particles or thermal microspheres, within the material.
- Easy to Clean: The streamlined internal architecture allows for rapid disassembly and maintenance, minimizing production downtime.
Specifications
| Model | TS8100-100M | TS8100-200M | TS8100-300M | TS8100-400M | TS8100-500M |
|---|---|---|---|---|---|
|
Dimensions (L x W) |
261 mm L x 34 mm W |
261 mm L x 34 mm W |
261 mm L x 34 mm W |
275 mm L x 34 mm W |
301 mm L x 34 mm W |
|
Weight |
590 g |
590 g |
590 g |
590 g |
590 g |
|
Precision |
± 1% [* 1] |
± 1% [* 1] |
± 1% [* 1] |
± 1% [* 1] |
± 1% [* 1] |
|
Self-Sealing |
30 psi (2 bar) [* 2] |
30 psi (2 bar) [* 2] |
30 psi (2 bar) [* 2] |
30 psi (2 bar) [* 2] |
30 psi (2 bar) [* 2] |
|
Material Inlet Port |
1/8″ NPT |
1/8″ NPT |
1/8″ NPT |
1/8″ NPT |
1/8″ NPT |
|
Material Outlet Port |
Male Luer lock |
Male Luer lock |
Male Luer lock |
Male Luer lock |
Male Luer lock |
|
Direct Mount Material Reservoir |
3 to 55 cc |
3 to 55 cc |
3 to 55 cc |
3 to 55 cc |
3 to 55 cc |
|
Dispense Volume per Rotation (average) |
0.012 ml |
0.047 ml |
0.080 ml |
0.12 ml |
0.31 ml |
|
Flow Rate |
0.132-1.32 ml/min |
0.517 – 5.17ml/min |
0.88 – 8.8 ml/min |
1.32 – 13.2 ml/min |
3.41 – 34.1 ml/min |
|
Max. Flow Rate Recommended [* 3] |
0.65 ml/min |
3.38 ml/min |
5.06 ml/min |
8.0 ml/min |
21 ml/min |
|
Minimum Dispense Amount |
0.0012 ml |
0.0047 ml |
0.0080 ml |
0.012 ml |
0.031 ml |
|
Fluid Viscosity |
1-300K cps or m.Pa.s |
||||
|
Wetted Parts |
Delrin®, Stainless Steel, Perfluoroelstomer (PFE), Ultra High Molecular Weight Polyethylene (UHMWPE) |
||||
- [ * 1 ] : Volumetric dispensing as absolute deviation per complete revolution and also depends on dispensing fluid.
- [ * 2 ] : For fluid with viscosity of 1000 Cps or lower. The pump can handle up to 80 psi(5.5 bar) for 300K Cps viscosity fluid.
- [ * 3 ] : This is the maximum flow rate that does not shorten the stator work life.
