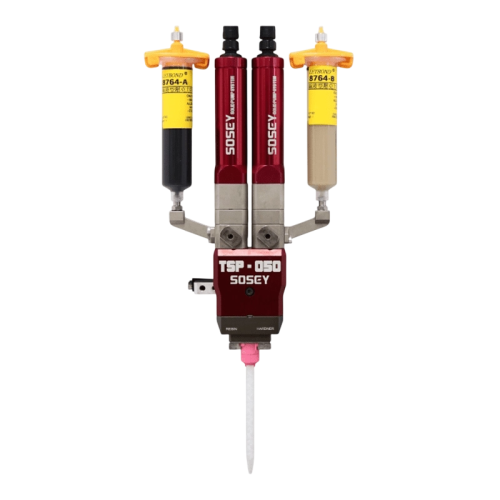

SOSEY Two-Liquid Precision Metered Dispenser TSP Series - FUWAYTAI Thailand

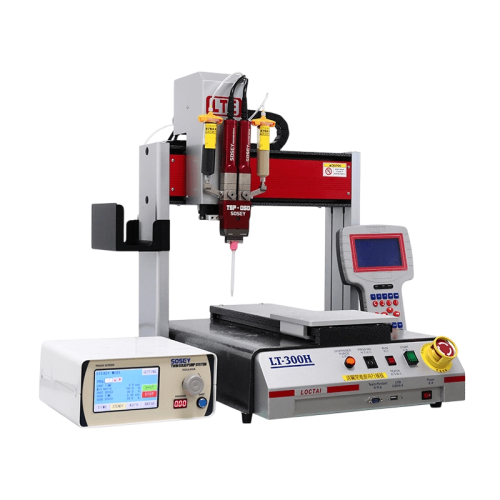

SOSEY Two-Liquid Precision Metered Dispenser TSP Series & LT-300H Dispenser Platforms - FUWAYTAI Thailand

Description

The TSP Series is a high-precision system designed to automate the critical processes of measuring, mixing, and dispensing multi-component materials, including urethane, epoxy, and silicone. By ensuring exceptional accuracy throughout these three operations, the TSP Series serves as an indispensable solution in the high-stakes production of automotive components, advanced sensors, and consumer electronics substrates.

Features

  • High-Precision Dual-Liquid Metering & Mixing: Equipped with two ultra-precision pump units and the patented SOSEY-SOLID® system, the TSP Series automates the precise proportional metering and uniform mixing of dual-component materials.
  • Ultra-Small Amount Dispensing Capability: Featuring advanced micro-control technology, the system reliably handles exceptionally small dispensing volumes of 0.015 / 0.050 / 0.150 / 0.450 / 0.900 ml per revolution.
  • Wide Range of Material Compatibility: The system maintains stable metering performance across a broad spectrum of materials, from low to high gravity, and can process high-viscosity fluids exceeding 200,000 mPa·s.
  • Extremely Lightweight & Easy Integration: With an exceptionally compact design (starting at just 1.12 kg), the unit can be effortlessly integrated into various tabletop robots or highly automated production lines.
  • Integrated Ratio Check Function: The controller supports a “Ratio Check” mode, allowing for real-time verification of the A and B material mixing ratio to ensure rigorous quality control.
  • Versatile Mixer Selection: Users can flexibly select the most suitable static mixer diameter and number of elements based on specific mixing ratios and material characteristics.

Specifications

Model TSP-015 TSP-050 TSP-150 TSP-500 TSP-1000
Dimensions (L x W x H)
235 mm x 60 mm x 34.5 mm
235 mm x 60 mm x 34.5 mm
283.0 mm x 65 mm x 36.5 mm
283.0 mm x 65 mm x 36.5 mm
319.5 mm x 65 mm x 36.5 mm
Weight
1.12 kg
1.12 kg
1.66 kg
1.66 kg
1.85 kg
Pump Size
0.015 ml/rev
0.050 ml/rev
0.150 ml/rev
0.450 ml/rev
0.900 ml/rev
Maximum discharge rate
(theoretical value)
0.03 ml/s
0.10 ml/s
0.30 ml/s
0.90 ml/s
1.80 ml/s
Minimum discharge rate
(theoretical value)
0.0005 ml/s
0.0017 ml/s
0.0050 ml/s
0.0150 ml/s
0.0300 ml/s
Mixer
Possible to select diameter / number of elements
Motor Speed
Up to 120 rpm (Usable speed differs by viscosity).
Pump drive motor
Servo motor
Dispensing Precision
± 1% (Depends on material)
Material Dispensing Method
PT 1/4 or Luer lock
Supply Pressure
0 ~ 0.6 MPa
Usable Temperature
Up to 50°C
Material Viscosity
More than 200,000 mPa-s.
Wetted Parts
SUS303F / UHHW PE / FFKM
Power Supply
Single phase AC 100～240 V，50/60 Hz
Power Consumption
200W
Pattern Memories
15 patterns (Selectable by external I/O).
Operation Mode
Timer dispensing / manual (continuous) dispensing / automatic cycle / ratio check
Air Supply
φ6 air supply. Capable of adjusting air pressurization in the range of 0–0.6 MPa with built-in regulator
