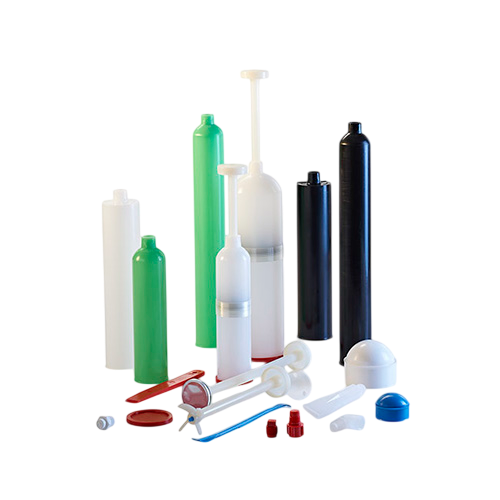

Cartridges & Accessories
Description
Our dependable, high-quality Cartridges and Accessories are engineered to withstand the rigors of modern manufacturing. Through continuous innovation, these products have been optimized to meet the most exacting requirements in the challenging field of fluid dispensing. Disposable plastic cartridges and nozzles provide a clean, highly efficient, and cost-effective method for diverse production environments. The system features plungers with a precision wiper-leading edge to ensure each cartridge is thoroughly emptied, minimizing material waste. Additionally, secure end caps and tip caps are available, making this system the ideal solution for prepackaged materials and pre-mixed frozen (PMF) material handling.

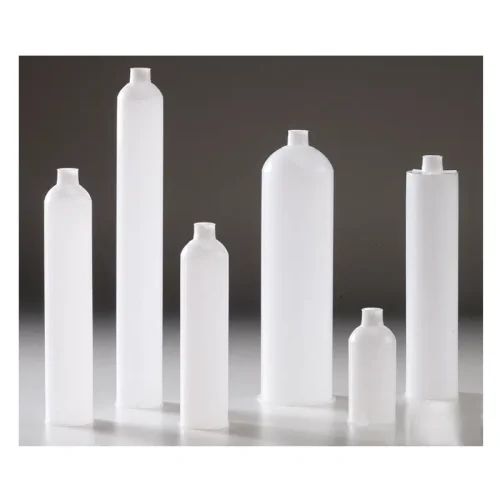

Cartridges
Cartridges are available in 2.5, 6, 8, 12 and 20 ounce and 1/10 gallon capacities. Each size can be used with hand or
bench-mounted air-powered dispensing tools or manual dispensing tools. Cartridges are molded in either high-density
or low-density polyethylene. Custom colors and assemblies are available. Sold in bulk packages.
Specifications
| Part Number | Description |
Length Inches/mm |
Diameter Inches/mm |
Quantity |
|---|---|---|---|---|
|
TS25C-500 |
2.5 oz (65 ml) Natural HD |
4.00/101.6 |
1.59/40.4 |
500 |
|
TS25C-GREEN-500 |
2.5 oz (65 ml) Green HD |
4.00/101.6 |
1.59/40.4 |
500 |
|
TS25C-LD-500 |
2.5 oz (65 ml) Natural LD |
4.00/101.6 |
1.59/40.4 |
500 |
|
TS60C-500 |
6 oz (165 ml) Natural HD |
7.11/180.6 |
1.59/40.4 |
500 |
|
TS60C-BLACK-500 |
6 oz (165 ml) Black HD |
7.11/180.6 |
1.59/40.4 |
500 |
|
TS60C-BLUE-500 |
6 oz (165 ml) Blue HD |
7.11/180.6 |
1.59/40.4 |
500 |
|
TS60C-GREEN-500 |
6 oz (165 ml) Green HD |
7.11/180.6 |
1.59/40.4 |
500 |
|
TS60C-YELLOW-500 |
6 oz (165 ml) Yellow HD |
7.11/180.6 |
1.59/40.4 |
500 |
|
TS60C-LD-500 |
6 oz (165 ml) Natural LD |
7.11/180.6 |
1.59/40.4 |
500 |
|
TS80C-250 |
8 oz (225 ml) Natural HD |
8.92/226.6 |
1.59/40.4 |
250 |
|
TS80C-LD-250 |
8 oz (225 ml) Natural LD |
8.92/226.6 |
1.59/40.4 |
250 |
|
TS120C-250 |
12 oz (330 ml) Natural HD |
12.34/313.4 |
1.59/40.4 |
250 |
|
TS120C-BLACK-250 |
12 oz (330 ml) Black HD |
12.34/313.4 |
1.59/40.4 |
250 |
|
TS120C-GREEN-250 |
12 oz (330 ml) Green HD |
12.34/313.4 |
1.59/40.4 |
250 |
|
TS120C-RED-250 |
12 oz (330 ml) Red HD |
12.34/313.4 |
1.59/40.4 |
250 |
|
TS120C-YELLOW-250 |
12 oz (330 ml) Yellow HD |
12.34/313.4 |
1.59/40.4 |
250 |
|
TS120C-LD-250 |
12 oz (330 ml) Natural LD |
12.34/313.4 |
1.59/40.4 |
250 |
|
TS110C-250 |
1/10 Gallon (310 ml) Natural HD |
8.99/228.3 |
1.85/47.0 |
250 |
|
TS110C-LD-250 |
1/10 Gallon (310 ml) Natural LD |
8.99/228.3 |
1.85/47.0 |
250 |
|
TS20C-100 |
20 oz (600 ml) Natural HD |
10.3/254.8 |
2.57/65.3 |
100 |
|
TS20C-BLACK-100 |
20 oz (600 ml) Black HD |
10.3/254.8 |
2.57/65.3 |
100 |
Plungers
- Wiper Plungers incorporate a modified or extended front wiper edge.
- Sold in bulk packages.
Specifications
| Part Number | Description | Quantity |
|---|---|---|
|
TS1P-SR-1000 |
2.5, 6, 8, 12 oz., Blue Wiper LD |
1000 |
|
TS1PB-SR-1000 |
2.5, 6, 8, 12 oz., Black Wiper LD |
1000 |
|
TS1WP-1000 |
2.5, 6, 8, 12 oz., Natural Extended Wiper LD |
1000 |
|
TS1WP-BLACK-1000 |
2.5, 6, 8, 12 oz., Black Extended Wiper LD |
1000 |
|
TS2PW-1000 |
1/10 Gallon White Extended Wiper LD w/ EVA |
1000 |
|
TS2P-BLACK-1000 |
1/10 Gallon Black Wiper LD |
1000 |
|
TS20P-100 |
20 oz White Wiper MD |
100 |
|
TS20PLD-100 |
20 oz Natural Wiper LD |
100 |
Caps
Top and bottom Caps provide a choice of methods to seal the neck and base of the cartridge. Sold in bulk packages of 1,000.
Specifications
| Part Number | Description | ||
|---|---|---|---|
|
TS2C-1000 |
2.5, 6, 8, 12 oz Red LD Flange Cap |
|
|
TS2C-BLACK-1000 |
2.5, 6, 8, 12 oz Black LD Flange Cap |
||
|
TS2C-GREEN-1000 |
2.5, 6, 8, 12 oz Green LD Flange Cap |
||
|
TS4C-1000 |
1/10 Gallon Red LD Flange Cap |
||
|
TS6C-1000 |
20 oz Red LD Flange Cap |
||
|
TS3P-1000 |
Threaded Tri-Seal Red PE Cap |
|
|
TS4P-1000 |
Threaded Square Red PE Cap |
||
|
TS5P-1000 |
Snap On Tri-Seal Red PE Cap |
||
|
TS5P-BLACK-1000 |
Snap On Tri-Seal Black PE Cap |
||
|
TS5P-GREEN-1000 |
Snap On Tri-Seal Green PE Cap |
||
|
TS5P-BLUE-1000 |
Snap On Tri-Seal Blue PE Cap |
||
|
TS6P-BLACK-1000 |
Threaded Black PE Cap |
||
|
TS6P-RED-1000 |
Threaded Red PE Cap |
||
|
TS6P-GREEN-1000 |
Threaded Green PE Cap |
||
Cartridge Assemblies
HD and LD Cartridges with plungers inserted offer an even higher level of convenience. Check the product descriptions for exact configuration and quantity.
Specifications
| Part Number | Description | Quantity | ||
|---|---|---|---|---|
|
TS25CP-500 |
2.5 oz HD with TS1P-SR Plunger inserted |
500 |
|
|
TS25CP-LD-500 |
2.5 oz LD with TS1P-SR Plunger inserted |
500 |
||
|
TS25CP-LD-BLUE-500 |
2.5 oz LD blue with TS1P-SR Plunger inserted |
500 |
||
|
TS25CWP-500 |
2.5 oz HD with TS1WP Plunger inserted |
500 |
||
|
TS25CPB-500 |
2.5 oz HD with TS1PB-SR Plunger inserted |
500 |
||
|
TS25CPB-LD-500 |
2.5 oz LD with TS1PB-SR Plunger inserted |
500 |
||
|
TS25CWP-500 |
2.5 oz LD with TS1WP-SR Plunger inserted |
500 |
||
|
TS60CP-500 |
6.0 oz HD with TS1P-SR Plunger inserted |
500 |
|
|
TS60CP-LD-500 |
6.0 oz LD with TS1P-SR Plunger inserted |
500 |
||
|
TS60CP-LD-BLUE-500 |
6 oz LD blue with TS1P-SR Plunger inserted |
500 |
||
|
TS60CPB-500 |
6.0 oz HD with TS1PB-SR Plunger inserted |
500 |
||
|
TS60CPB-LD-500 |
6 oz with TS1WP Plunger inserted |
500 |
||
|
TS60CWP-500 |
Threaded Red PE Cap |
500 |
||
|
TS60CWP-GREEN-500 |
6 oz HD Green with TS1WP Plunger inserted |
500 |
||
|
TS60CWP-LD-500 |
6 oz LD with TS1WP Plunger inserted |
500 |
||
|
TS80CP-250 |
8 oz with TS1P-SR Plunger inserted |
250 |
|
|
TS80CWP-250 |
8 oz with TS1WP Plunger inserted |
250 |
||
|
TS120CP-250 |
12 oz HD with TS1P-SR Plunger inserted |
250 |
|
|
TS120CPB-250 |
12 oz HD with TS1PB-SR Plunger inserted |
250 |
||
|
TS120CWP-250 |
12 oz HD with TS1WP Plunger inserted |
250 |
||
|
TS120CWP-GREEN-250 |
12 oz HD Green with TS1PB Plunger inserted |
250 |
||
|
TS20CP-100 |
20 oz with TS20P Plunger inserted |
100 |
|
|
TS20CPFM-100 |
20 oz with TS20PFLD Plunger and 600-380 Mix
Wheel inserted – MOQ applies |
100 |
||
