Compression Fittings & Tubes

Description

This series of Compression Fittings and Fluid Tubing is engineered to provide a highly secure, leak-proof connection for industrial fluid delivery. The compression mechanism ensures a robust mechanical grip on the tubing, effectively increasing fluid flow while maintaining system integrity under pressure. The tubing is constructed from high-quality Polyethylene (PE), offering excellent chemical resistance and flexibility for various manufacturing environments.

Specifications

Fluid Tubing (Polyethylene)
Part No. Color Size
TSD1099-22
Black
3/8 ” O.D x 1/4” ID
TSD1099-23
Clear
3/8 ” O.D x 1/4” ID
TSD1099-24
Clear
1/4 ” O.D x 1/8” ID
TSD1099-25
Black
1/4 ” O.D x 1/8” ID
TSD1099-45
Clear
6mm O.D x 4mm ID
TSD1099-46
Black
6mm O.D x 4mm ID

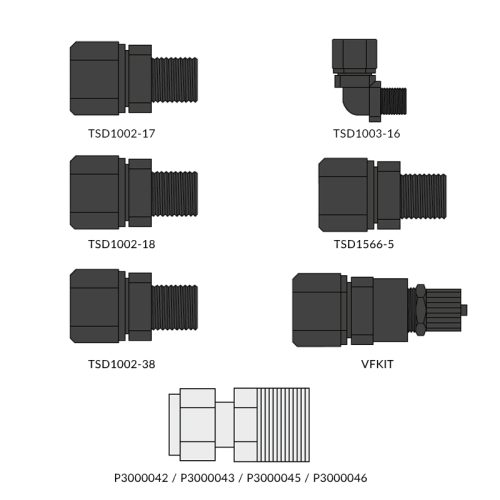

Part No. Material Size
TSD1002-17
Black PP
Thread Size: ⅛” NPT
Tube Size: ⅜” OD
TSD1002-18
Black PP
hread Size: ⅛” NPT
Tube Size: ¼” OD
TSD1002-38
Black PP
Thread Size: ¼” NPT
Tube Size: ¼” OD
TSD1003-16
Black PP
Thread Size: ⅛” NPT
Tube Size: ¼” OD
TSD1566-5
Black PP
Thread Size: ¼” NPT
Tube Size: ⅜” OD
VFKIT
Black PP/Nylon
Use: ¼” OD To Male Luer Lock
Part No. Material Size
P3000042
Stainless Steel
Thread Size: ⅜-18 NPT
Tube Size: ¼” OD
P3000043
Stainless Steel
Thread Size: ⅜-18 NPT
Tube Size: ⅜” OD
P3000045
Stainless Steel
Thread Size: ¼-18 NPT
Tube Size: ¼” OD
P3000046
Stainless Steel
Thread Size: ¼-18 NPT
Tube Size: 4 mm OD
