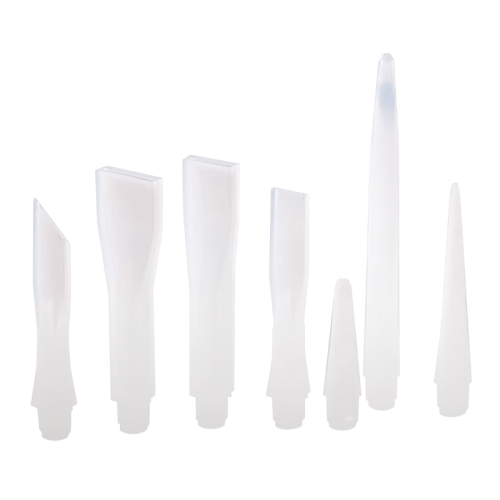

Disposable Nozzles
Description
Disposable nozzles and dispensing tip adapters provide extensive application versatility. While standard nozzles can be cut back to customize the orifice size, our specialty nozzles are precision-molded for specific technical requirements. Both types are designed to fit seamlessly with all Techcon cartridges or industry equivalents, ensuring reliable and precise dispensing performance.
Standard Nozzles
Standard nozzles are precision moulded from natural polyethylene and have 1/4″ NPT male threads to fit all Techcon cartridges or equivalent. Color nozzles are available upon request. Sold in bulk packages of 1,000.
Specifications
| Part Number | Description |
|---|---|
|
TS216-1000 |
2″ (64 mm) x 1/16″ (1.6 mm), HDPE |
|
TS218-1000 |
2″ (64 mm) x 1/8″ (3.2mm), HDPE |
|
TS218-LD-1000 |
2″ (64 mm) x 1/8″ (3.2 mm), LD |
|
TS416-HO-HD-1000 |
4″ (101.6 mm) x 1/16″ (1.6 mm), HDPE |
|
TS416-HO-LD-1000 |
4″ (101.6 mm) x 1/16″ (1.6 mm), LD |
|
TS418-HO-LD-1000 |
4″ (101.6 mm) x 1/8″ (3.2 mm), LD |
|
TS432-HO-HD-1000 |
4″ (101.6 mm) x 1/32″ (0.8 mm), HDPE |
|
TS432-HO-LD-1000 |
4″ (101.6 mm) x 1/32″ (0.8 mm), LD |
|
TS490-HO-LD-1000 |
4″ (101.6 mm) x 3/32″ (2.4 mm), LD |
|
TS616-HO-LD-1000 |
6″ (152.4 mm) x 1/16″ (1.6 mm), LD |
|
TS618-HO-LD-1000 |
6″ (152.4 mm) x 1/8″ (3.2 mm), LD |

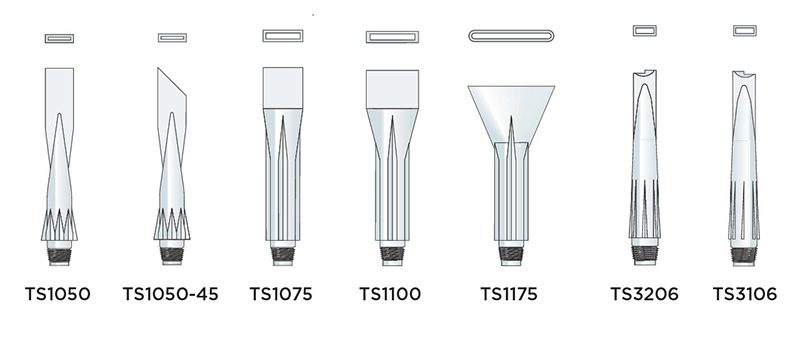

Specialty Nozzles
Specialty nozzles are precision moulded from natural polyethylene and have 1/4” NPT male threads to fit all Techcon cartridges or equivalent. Sold in bulk packages of 1,000.
Specifications
| Part Number | Description |
|---|---|
|
TS1050-1000 |
4″ (101.6 mm) x 0.5″ (12.4 mm) x 0.06″ (1.52 mm) |
|
TS1050-45-1000 |
4″ (101.6 mm) x 0.5″ (12.4 mm) x 0.06″ (1.52 mm) |
|
TS1075-1000 |
4.5″ (114.3 mm) x 0.75″ (19.5 mm) x 0.13″ (3.3 mm) |
|
TS1100-1000 |
4.4″ (111.7 mm) x 1.0″ (25.4 mm) x 0.13″ (3.3 mm) |
|
TS1175-1000 |
4″ (101.6 mm) x 1.75″ (44.45 mm) x 0.13″ (3.3 mm) |
|
TS3106-1000 |
3.8″ (96.5 mm) x 0.35″ (8.89 mm) x 0.11″ (2.79 mm) |
|
TS3206-1000 |
3.8″ (96.5 mm) x 0.35″ (8.89 mm) x 0.11″ (2.79 mm) |

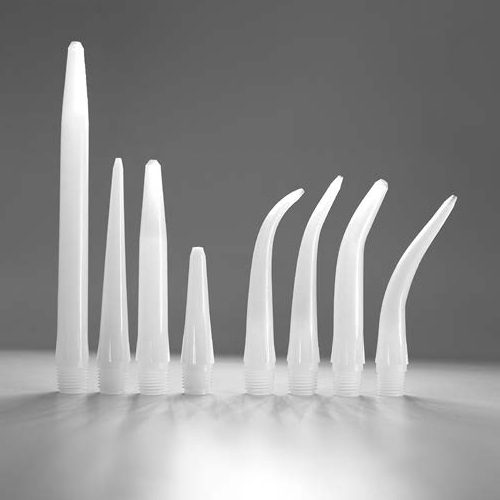

Bent Nozzles
Below is the list of standard bent nozzles. Special bent nozzles available upon request. Sold in bulk packages of 1,000.
Specifications
| Part Number | Description |
|---|---|
|
TS416-HO-LD-B30/1-1000 |
Bent 30° at 1″ (25.4 mm) |
|
TS416-HO-LD-B30/2-1000 |
Bent 30° at 2″ (50.8 mm) |
|
TS416-HO-LD-B40/1-1000 |
Bent 40° at 1″ (25.4 mm) |
|
TS418-HO-LD-B30/1-1000 |
Bent 30° at 1″ (25.4 mm) |
|
TS618-HO-LD-B30/2-1000 |
Bent 30° at 2″ (50.8 mm) |
