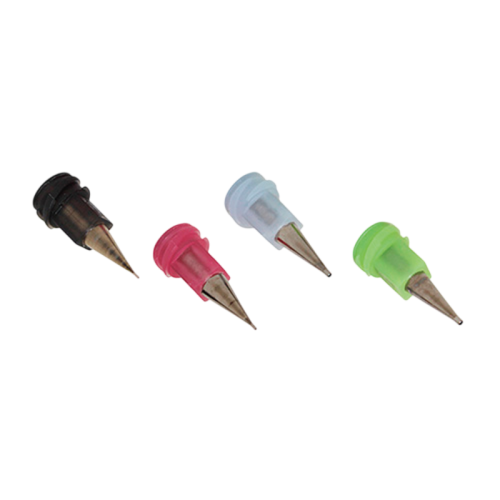

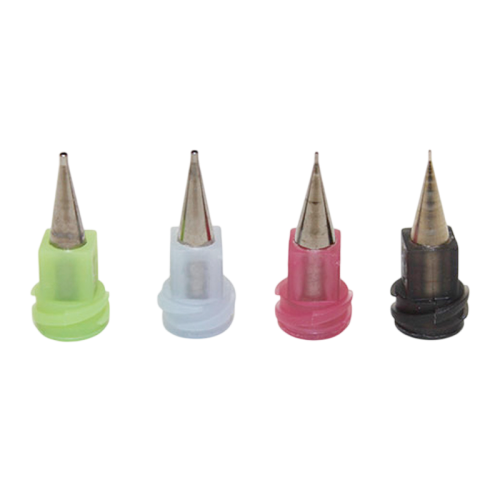

Techcon MT Series Metal Tapered Tips

High-Flow Metal Tips for Precision Automated Dispensing

The Techcon MT Series Metal Tapered Tips are designed for high-flow, high-speed dispensing applications where precision and stable positioning are required.

A smooth internal conical fluid path helps reduce turbulent flow, back pressure, clogging, air entrapment, and dripping while allowing higher fluid flow rates. The phosphor-bronze construction with electroless nickel plating provides a rigid metal tip suitable for robotic and automatic dispensing applications.

The thin-walled tip design helps improve dispensing accuracy while reducing fluid tailing and stringing. MT Series tips are available from 18 to 30 gauge and are color-coded for easy identification. Explore FUWAYTAI’s complete range of dispensing accessories for precision fluid-control applications.

Features

Smooth Internal Fluid Path: Helps reduce turbulent fluid flow, back pressure, air entrapment, and fluid dripping.
High Flow Performance: The conical fluid path supports higher flow rates for high-speed dispensing applications.
Metal Construction: Phosphor-bronze construction with electroless nickel plating provides rigid and accurate tip positioning.
Designed for Automated Dispensing: Suitable for robotic and automatic dispensing applications where precision is required.
Thin-Walled Tip Design: Thin tip walls help reduce fluid tailing and stringing while supporting dispensing accuracy.
Clog-Resistant Design: Designed to reduce clogging and support dispensing of filled fluids.

Specifications

Part Number	International Hub Color	Gauge	I.D. (inches)	I.D. (mm)	OD (inches)	OD (mm)
MT18-PBN	Pink	18	0.040	1.019	0.050	1.260
MT19-PBN	Orange	19	0.033	0.839	0.042	1.079
MT20-PBN	Green	20	0.026	0.661	0.035	0.899
MT21-PBN	Blue	21	0.023	0.590	0.033	0.830
MT23-PBN	Purple	23	0.021	0.544	0.026	0.655
MT25-PBN	White	25	0.016	0.417	0.021	0.528
MT27-PBN	Red	27	0.012	0.315	0.017	0.426
MT30-PBN	Black	30	0.008	0.214	0.013	0.325
