TS Series Tips
Description

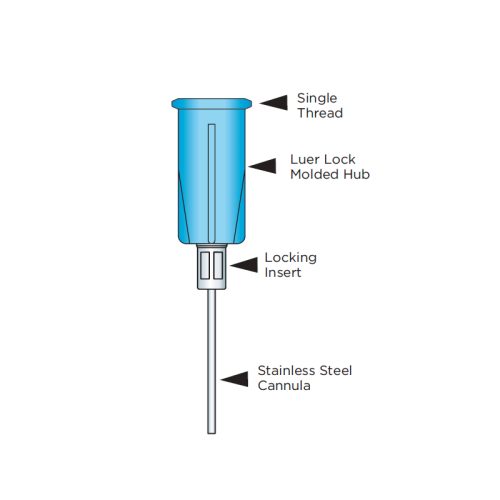

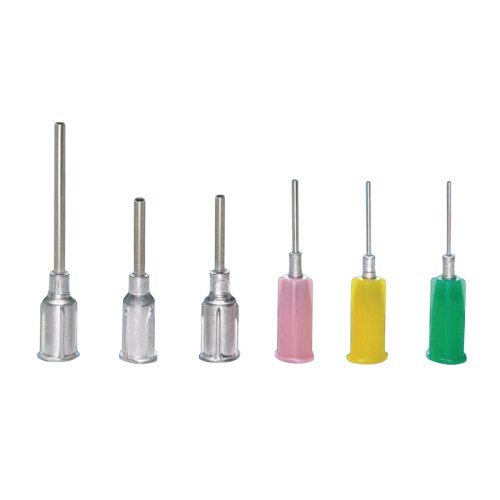

The TS Series dispensing tips offer a variety of dispensing performance and flexibility options. Stainless steel tubing is cut to precise lengths and ground to be burr-free. Cut tubing is crimped into an aluminum locking insert, then molded into polyethylene hubs. Molded hub colors correspond to gauge size. All TS Series tips secure to Techcon Systems syringe barrels and correspond to the Luer lock specification.
Specifications
| Part Number |
International Hub Color |
Gauge |
I.D. (inches) |
I.D. (mm) |
Length (inches) |
Length (mm) |
|
|---|---|---|---|---|---|---|---|
|
TS18-1/2-1000 |
Pink |
|
18 |
0.033 |
0.838 |
0.5 |
12.7 |
|
TS18-1-1000 |
Pink |
|
18 |
0.033 |
0.838 |
1.0 |
25.4 |
|
TS19-1/2-1000 |
Brown |
|
19 |
0.028 |
0.711 |
0.5 |
12.7 |
|
TS19-1-1000 |
Brown |
|
19 |
0.028 |
0.711 |
1.0 |
25.4 |
|
TS20-1/2-1000 |
Yellow |
|
20 |
0.024 |
0.609 |
0.5 |
12.7 |
|
TS20-1-1000 |
Yellow |
|
20 |
0.024 |
0.609 |
1.0 |
25.4 |
|
TS21-1/2-1000 |
Green |
|
21 |
0.020 |
0.508 |
0.5 |
12.7 |
|
TS22-1/2-1000 |
Black |
|
22 |
0.016 |
0.406 |
0.5 |
12.7 |
|
TS22-1-1000 |
Black |
|
22 |
0.016 |
0.406 |
1.0 |
25.4 |
|
TS23-1/4-1000 |
Blue |
|
23 |
0.013 |
0.330 |
0.25 |
6.35 |
|
TS23-1/4-1000 |
Blue |
|
23 |
0.013 |
0.330 |
0.5 |
12.7 |
|
TS25-1/2-1000 |
Blue |
|
25 |
0.010 |
0.254 |
0.5 |
12.7 |
|
TS27-1/4-1000 |
Grey |
|
27 |
0.008 |
0.203 |
0.025 |
6.35 |
|
TS30-1/4-1000 |
Lavender |
|
30 |
0.006 |
0.152 |
0.025 |
6.35 |
|
TS30-5/16-1000 |
Lavender |
|
30 |
0.006 |
0.152 |
0.31 |
7.94 |
|
TS30-1/2-1000 |
Lavender |
|
30 |
0.006 |
0.152 |
0.5 |
12.7 |
