TSD 931 Series Luer Lock Fittings

Description

The TSD931 Series Fittings are precision-molded components engineered for maximum reliability in fluid dispensing systems. These fittings boast exceptional chemical resistance, making them ideal for use with a wide range of solvents, acids, and resin-based fluids. Designed with a universal locking end, they are fully compatible with all standard dispensing tips and molded fittings used in the TSD126 Series hose assemblies. Whether used for individual connections or integrated into complex fluid lines, the TSD931 Series ensures a secure, leak-proof interface for demanding industrial applications.

Specifications

Part No.	Material	Thread & Barb Size	Type

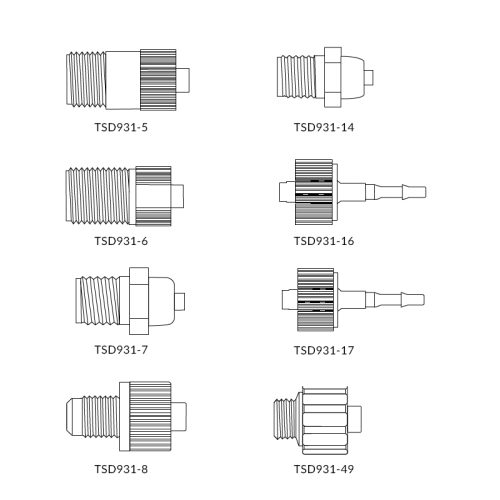

TSD931-5	White Celcon	5/16-28	Male
TSD931-6	White Acetal	⅛” NPT	Male
TSD931-7	White PP	¼-18 NPT	Male
TSD931-8	White Acetal	¼-32	Male
TSD931-14	Black PP	¼-18 NPT	Male
TSD931-16	White Acetal	3.30 mm/0.13”	Male
TSD931-17	White Acetal	4.32 mm/0.17”	Male
TSD931-49	White Nylon	¼-28	Male

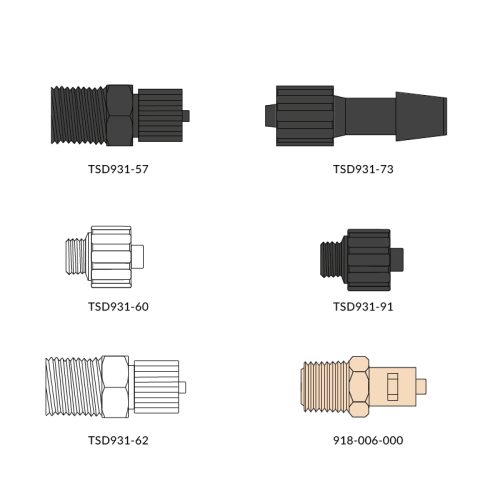

TSD931-57	Black Nylon	⅛” NPT	Male
TSD931-60	Clear PP	¼-28	Male
TSD931-62	Clear PP	⅛” NPT	Male
TSD931-73	Black PP	8.38 mm/0.33”	Male
TSD931-91	Black Delrin	¼-28	Male
918-006-000	Nickel Plated & Brass	¼” NPT	Male

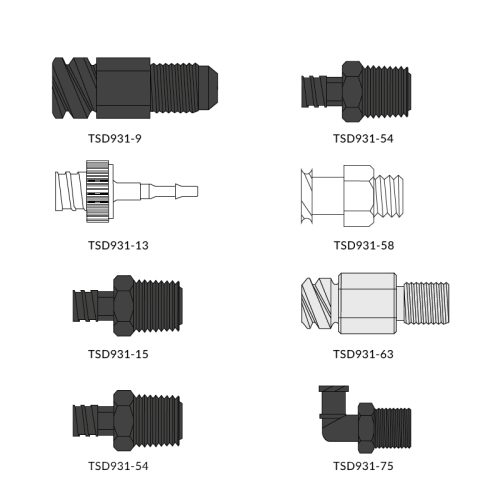

TSD931-9	Black Acetal	¼-32	Female
TSD931-13	White Acetal	4.32 mm/0.17”	Female
TSD931-15	Black Nylon/Acetal	¼” NPT	Female
TSD931-54	Black Nylon/Acetal	⅛” NPT	Female
TSD931-54	Black PP	⅛” NPT	Female
TSD931-58	Clear PP	¼-28	Female
TSD931-63	Stainless Steel	10-32	Female
TSD931-75	Black PP	⅛-27 NPT	Female
