Techcon TS1201 Dispensing Pen

Manual Dispensing with a Disposable Pinch Tube

The Techcon TS1201 Dispensing Pen is a hand-held fluid dispensing tool that uses a disposable pinch tube assembly for controlled manual dispensing.

The operator starts and stops the dispense cycle by pressing and releasing the finger lever, while a built-in flow-rate adjustment allows the material output to be fine-tuned for different applications. The pen can be gravity-fed or pressure-fed from a syringe barrel or compatible fluid reservoir.

Only the disposable pinch tube contacts the dispensed material, helping reduce contamination and eliminating routine cleaning of the internal fluid path. Typical applications include cyanoacrylates, two-part adhesives, and anaerobic materials. Explore FUWAYTAI’s complete range of industrial dispensing valves for precision fluid-control applications.

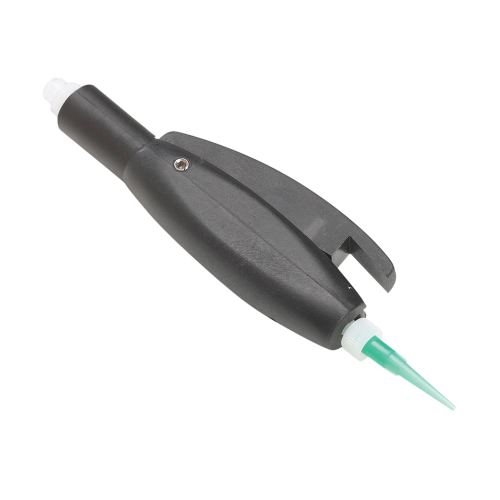

Techcon TS1201 Hand-Held Dispensing Pen

Features

  • Disposable Feed Path: Only the disposable pinch tube contacts the dispensed material, eliminating routine cleaning of the internal fluid path.
  • Optional Black Feed Path: Black pinch tubes are available for UV and light-sensitive fluid applications.
  • Optional Polyurethane Feed Path: Polyurethane pinch tubes are available as an alternative material option for different dispensing requirements.
  • Simple Manual Operation: The hand-held finger lever provides straightforward start/stop control of the dispense cycle.
  • Compact & Lightweight Design: The compact pen weighs only 36 g, making it suitable for comfortable hand-held dispensing applications.

Specifications

Model TS1201
Size
37 mm x 122 mm
Weight
36 g
Viscosity Range
1 – 45,000 cps
Fluid Inlet Port
Luer lock female
Fluid Outlet Port
Luer Lock Male
Max. Fluid Pressure
60 psi
Wetted Parts
Polyethylene (PE), optional Polyurethane (PU)
Mounting
Hand held
