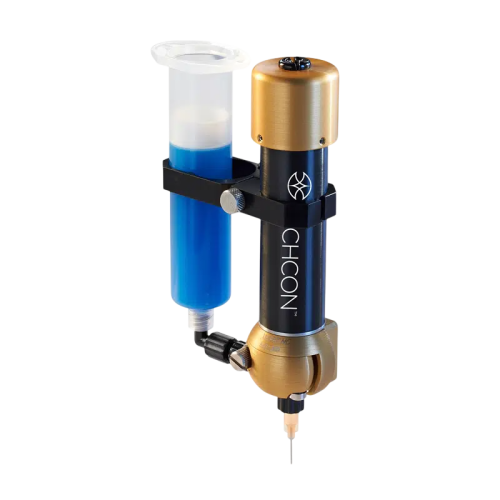

Techcon TS5000DMP-DCX Rotary Auger Microvalve
Precision Rotary Dispensing with Disposable Material Path
The Techcon TS5000DMP-DCX Rotary Auger Microvalve uses a disposable material path (DMP) with a replaceable feed screw for precise and repeatable fluid dispensing.
The disposable feed path can be replaced quickly without cleaning or refurbishing the valve. Multiple 6, 8, and 16 pitch feed-screw options, together with fixed or rotating tip collars, support different dispensing requirements.
The series also provides adjustable dispense rate, motor reverse capability, field-replaceable wetted parts, and optional encoder feedback for closed-loop motor control. Typical applications include solder paste, die attach, surface-mount adhesive, chip encapsulation, dam writing, two-part epoxy, and UV adhesive dispensing.
Features
- Precise & Consistent Shot Sizes: Provides accurate and repeatable fluid deposits for controlled dispensing applications.
- Disposable Material Path: The disposable feed path can be replaced quickly without cleaning or refurbishing the valve, helping reduce maintenance time and production downtime.
- UV-Compatible Full Black Feed Path: A full-black disposable feed path is available for UV and light-sensitive fluid applications.
- Adjustable Dispense Rate: Feed-screw operation allows the dispense rate to be adjusted for different materials and process requirements.
- Multiple Feed-Screw Options: Available with 6, 8, and 16 pitch feed screws to support different dispensing requirements.
- Rotating Tip Collar Option: Fixed or rotating color-coded tip collars are available to support different dispensing-tip configurations.
- Motor Reverse Capability: Supports reverse motor operation for flexible dispensing-process control.
- Field-Replaceable Wetted Parts: Wetted components can be replaced in the field to simplify maintenance and reduce equipment downtime.
- Optional Closed-Loop Motor Control: Encoder-equipped versions provide motor feedback for closed-loop motor control and consistent dispensing performance.
Specifications
| Model | TS5000DMP-DCX-SL | TS5000DMP-DCX-SR |
|---|---|---|
Size | 39.6 × 90.4 × 149.4 mm | 39.6 × 90.4 × 149.4 mm |
Weight | 331 g | 331 g |
Viscosity Range | 30,000–1,300,000 cps | 30,000–1,300,000 cps |
Fluid Inlet Port | Luer lock female | Luer lock female |
Fluid Outlet Port | Luer Lock Male | Luer Lock Male |
Door Open Location | Left Hand Side | Right Hand Side |
Max. Fluid Pressure | 30 psi | 30 psi |
Operating Frequency | 300+ cycles/min | 300+ cycles/min |
Mounting Port | 1 in. (25.4 mm) channel | 1 in. (25.4 mm) channel |
Wetted Parts | Delrin®, Viton®, Nylon® | Delrin®, Viton®, Nylon® |
