Techcon TS5440 Microshot Needle Valve

Ultra-Precise Micro-Dispensing for Small Deposits

The Techcon TS5440 Microshot Needle Valve is designed for highly precise dispensing of very small fluid deposits. Its needle closes the fluid path directly inside the dispensing tip, allowing shot sizes as small as 0.5 µL.

A short opening stroke provides fast and positive shut-off, while external stroke adjustment allows fine control of dispense volume. The valve is suitable for low- to medium-viscosity materials and supports viscosities up to approximately 100,000 cP.

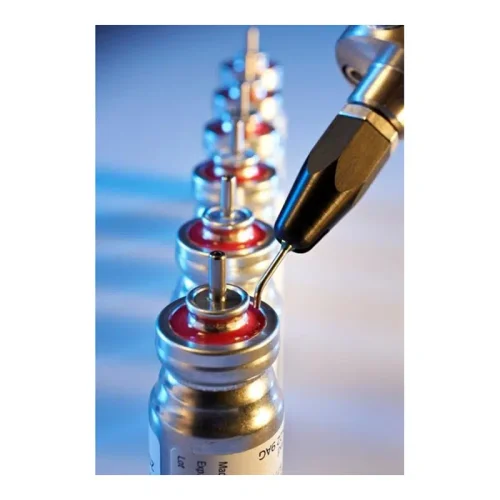

Its compact design, low-maintenance construction, and threaded mounting make it suitable for automated dispensing applications. Typical uses include UV adhesive dispensing in medical devices, micro-dots of lubricant in automotive switches, and small adhesive deposits in electronics assembly.

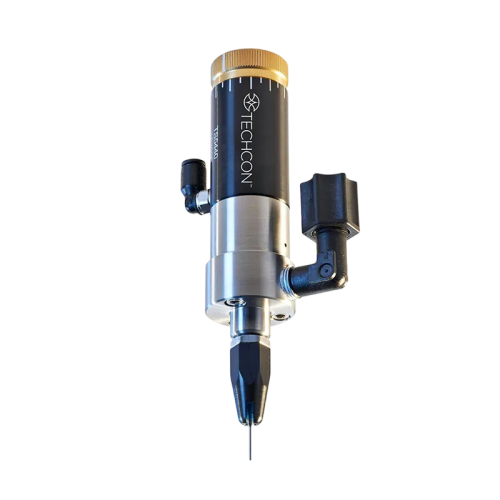

Techcon TS5440 Microshot Needle Valve with Dispensing Tip
Techcon TS5540 Spray Valve Precision Coating Application

Features

  • High-Precision Deposits: Provides precise and consistent deposit sizes for demanding micro-dispensing applications.
  • Micro-Shot Capability: Delivers deposits as small as 0.5 µL for precise small-volume dispensing.
  • Zero Dead Volume: The needle closes the fluid path directly on the cannula inside the dispensing tip, minimizing trapped fluid and residual material.
  • FDA-Compliant Wetted Components: Wetted parts include FDA-compliant 303 stainless steel together with compatible sealing materials for reliable fluid handling.
  • Precise Tip Positioning: The material outlet design supports accurate positioning and orientation of bent dispensing tips.
  • Low-Maintenance Design: Simple valve construction supports reliable operation with minimal routine maintenance and downtime.

Specifications

Model TS5440
Size
127 x 28 mm
Weight
227 g
Viscosity Range
1 – 100,000 cps
Fluid Inlet Port
1/8” NPT female
Fluid Outlet Port
Male Luer taper with locking cap
Air Inlet Port
10-32 UNF
Aux Air Inlet Port
10-32 UNF
Activation Pressure
70 psi
Max. Fluid Pressure
100 psi
Operating Frequency
Exceeds 400 cycles/min.
Mounting Port
1/4-20 UNC-2B
Wetted Parts
303 Stainless Steel, Teflon®, EPR
