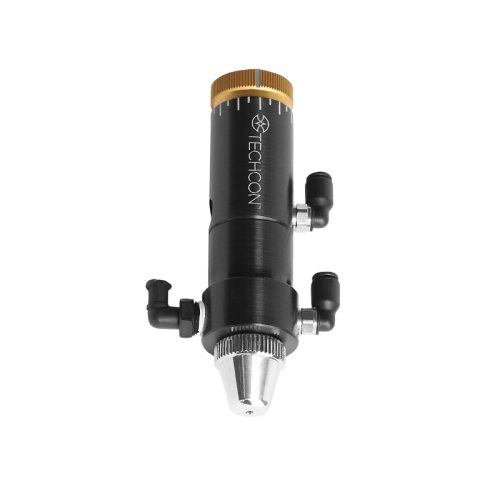

Techcon TS5520 Fine Mist Spray Valve
Precision Fine-Mist Spraying for Low-Viscosity Fluids
The Techcon TS5520 Fine Mist Spray Valve is designed for precise spray applications of low-viscosity materials. An external stroke control allows fine adjustment of fluid flow for controlled spray performance.
The spray cycle can be managed through adjustable fluid flow together with precise control of pre-spray, atomizing air, and post-spray when used with the TS566R Smart Spray Valve Controller.
The TS5520 provides consistent spray coverage, positive shut-off, and simplified maintenance. Typical applications include spraying conformal coatings, solvents, oils, and other low-viscosity fluids.
Features
- Consistent Spray Coverage: Provides uniform fine-mist spraying for controlled coating and fluid application.
- Reduced Overspray: Designed to minimize overspray during precise low-viscosity spray applications.
- Positive Shut-Off: Needle-and-seat valve design provides reliable fluid shut-off after each spray cycle.
- Adjustable Flow Control: External stroke adjustment allows fine control of fluid flow for different spray requirements.
- Precise Spray Cycle Control: Supports controlled pre-spray, atomizing air, and post-spray when used with the TS566R Smart Spray Valve Controller.
- Easy Maintenance: Simplified seal design helps reduce routine maintenance and downtime.
Specifications
| Model | TS5520 |
|---|---|
Size | 107 x 28.5 mm |
Weight | 136 g |
Viscosity Range | 1 – 1,000 cps |
Fluid Inlet Port | 1/8” NPT female |
Fluid Outlet Port | Spray / Nozzle and Spray Cap |
Cap Fan | 0.014″ orifice |
Air Inlet Port | 10-32 UNF |
Aux Air Inlet Port | 10-32 UNF |
Activation Pressure | 70 psi |
Max. Fluid Pressure | 100 psi |
Operating Frequency | Exceeds 400 cycles/min. |
Mounting Port | 1/4-20 UNC-2B |
Wetted Parts | Type 303 Stainless Steel, Aluminum, Teflon®, Delrin®, Ethylene Propylene Rubber |
