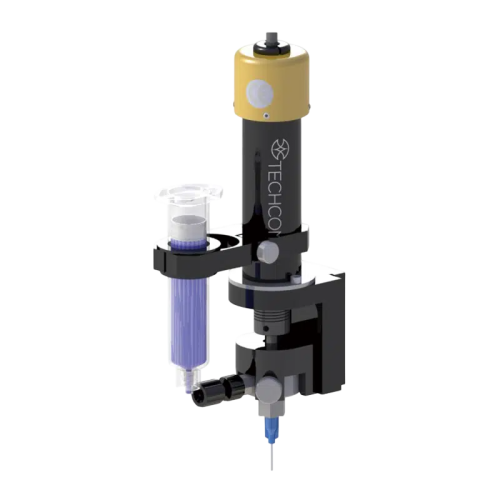

Techcon TS7000IMP Series Rotary Auger Valve
Precision Rotary Dispensing with Interchangeable Material Path
The Techcon TS7000IMP Series Rotary Auger Valve uses a feed screw with rotary displacement action for precise and repeatable fluid dispensing.
Its interchangeable material path design allows the feed screw and chamber cartridge to be replaced quickly without removing the main valve from the machine. The cartridge can also be used with compatible TS5000DMP feed screw inserts for greater process flexibility.
The TS7000IMP Series supports multiple feed screw configurations for different dispensing requirements, while encoder-equipped versions provide closed-loop motor control with encoder feedback. Explore FUWAYTAI’s complete range of industrial dispensing valves for precision fluid-control applications.
Features
- Accurate & Repeatable Dispensing: Provides precise and consistent fluid deposits for controlled dispensing applications.
- Quick Feed Screw & Chamber Changeover: The interchangeable cartridge design allows the feed screw and chamber assembly to be replaced quickly without removing the main valve from the machine.
- Interchangeable Material Path: The modular material-path design supports convenient replacement and configuration changes for different dispensing requirements.
- Motor-Isolated Cartridge Design: The cartridge assembly helps separate the fluid path from the motor section to reduce the risk of material contamination.
- Precision Hardened Feed Screw: Hardened tool-steel feed screws provide durable and stable dispensing performance.
- Field-Replaceable Parts: Wetted and wear components can be replaced in the field to simplify maintenance and reduce equipment downtime.
- TS5000DMP Feed Screw Compatibility: Compatible feed screw inserts from the TS5000DMP Series can be used with the TS7000IMP cartridge for greater process flexibility.
- Flexible Syringe & Tip Positioning: Syringe mounting and dispensing-tip positions can be adjusted to suit different machine layouts and dispensing applications.
- Optional Encoder Feedback & Closed-Loop Control: Encoder-equipped versions provide motor feedback for closed-loop control and more consistent dispensing performance.
Specifications
| Model | TS7000IMP Series | TS7000IMP “E” Series |
|---|---|---|
Size | 170.18 mm x 93.98 mm | 171.45 mm x 93.98 mm |
Weight | 438 g | 438 g |
Viscosity Range | 30K – 1300K cps | 30K – 1300K cps |
Fluid Inlet Port | Luer lock female | Luer lock female |
Fluid Outlet Port | Luer Lock Male | Luer Lock Male |
Max. Fluid Pressure | 30 psi | 30 psi |
Operating Frequency | Exceeds 300 cycles/min. | Exceeds 300 cycles/min. |
Input Voltage Range | 4 – 24 VDC | 4 – 24 VDC |
Mounting Port | 1” (25.4mm) Channel | 1” (25.4mm) Channel |
Wetted Parts | 303 SS, UHMWPE, Hardened Tool Steel, Nylon® | 303 SS, UHMWPE, Hardened Tool Steel, Nylon® |
