Techcon TS1212 Disposable Pinch Tube Valve
Pneumatic Dispensing with a Disposable Fluid Path

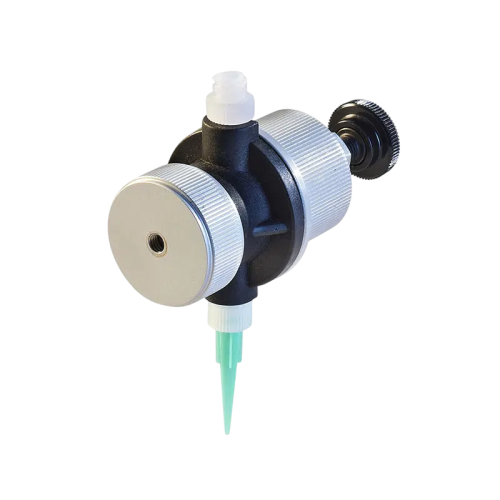

The Techcon TS1212 Disposable Pinch Tube Valve provides pneumatic control for continuous or micro-shot dispensing of low- to medium-viscosity fluids.
During operation, an air signal opens the valve to allow material flow. When the dispense cycle ends, an internal spring returns the shut-off piston to pinch the disposable tube, stopping fluid flow. A built-in stroke adjustment allows the shot size or flow rate to be fine-tuned.
Only the disposable pinch tube assembly contacts the dispensed material, helping prevent contamination of the valve body and eliminating routine fluid-path cleaning. The TS1212 is suitable for materials including cyanoacrylates, two-part adhesives, and UV-sensitive fluids when used with an optional black feed path. Explore FUWAYTAI’s complete range of industrial dispensing valves for precision fluid-control applications.
Features
- Disposable Fluid Path: Only the disposable pinch tube contacts the dispensed material, helping prevent fluid contamination of the valve body.
- No Cleaning Required: The disposable fluid path can be replaced when needed, eliminating routine cleaning of the valve’s internal fluid path.
- Optional Black Feed Path: Black pinch tubes are available for UV and light-sensitive fluid applications.
- Optional Polyurethane Feed Path: Polyurethane pinch tubes are available as an alternative material option for different dispensing requirements.
- Compact & Lightweight Design: The compact pneumatic valve is lightweight and suitable for integration into dispensing equipment and automated systems.
- Low-Maintenance Operation: Simple valve construction and a replaceable fluid path help minimize routine maintenance requirements.
Specifications
| Model | TS1212 |
|---|---|
Size | 76.0 mm x 63.3 mm |
Weight | 82 g |
Viscosity Range | 1 – 45,000 cps |
Fluid Inlet Port | Luer lock female |
Fluid Outlet Port | Luer Lock Male |
Max. Fluid Pressure | 60 psi |
Activation Pressure | 50 psi (3.4 bar) minimum |
Operating Frequency | Exceeds 400 cycles/min. |
Wetted Parts | Polyethylene, optional polyurethane |
Mounting | 1/4″-20 UNC-2B |
TS1212 Disposable Pinch Tube Selection Guide

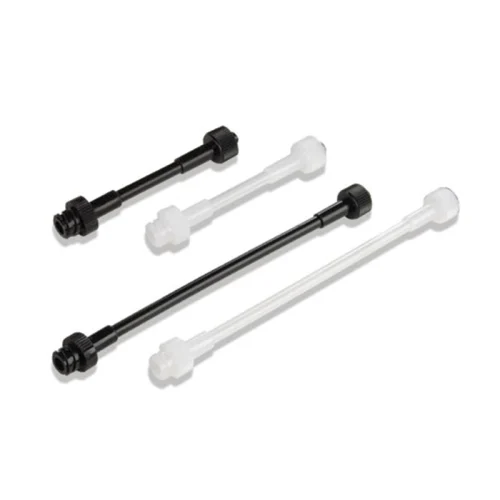

| Part Number | Material | Internal Diameter (ID) | Connection / Qty |
|---|---|---|---|
1212-004-002BPK | Black PE | 0.1″ (2.54mm) | Male to Female (Pack of 10) |
1212-004-002PK | Natural PE | 0.1″ (2.54mm) | Male to Female (Pack of 10) |
1212-004-000PK | Natural PE | 0.07″ (1.78mm) | Male to Female (Pack of 10) |
1212-004-100BPK | Black PU | 0.125″ (3.18mm) | Male to Female (Pack of 10) |
1212-004-100PK | Natural PU | 0.125″ (3.18mm) | Male to Female (Pack of 10) |
1212-000-005 | Pinch Cushion | ||
