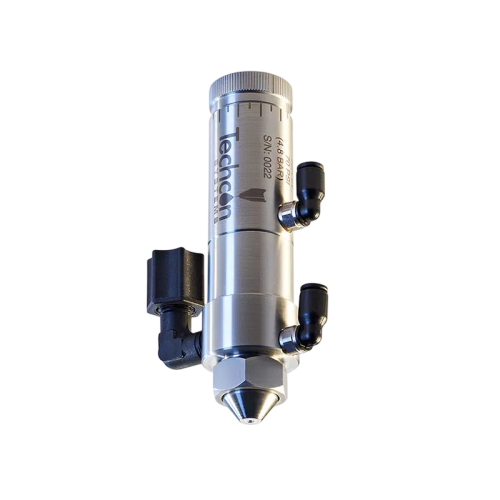

Techcon TS5540 Series Spray Valves
Precision Spray Control with Round & Fan Patterns

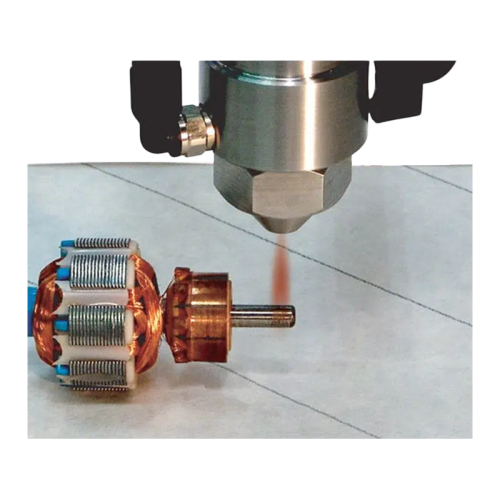

The Techcon TS5540 Series Spray Valves are designed for precise spray applications of low-viscosity materials. External stroke adjustment allows fine control of fluid flow for controlled and repeatable spray performance.
Round (R) and fan (F) nozzle options provide different spray patterns for various coating requirements. The valves feature FDA-compliant 303 stainless-steel construction in both the air cylinder and fluid housing, together with a field-replaceable Delrin® seat for reliable shut-off and long service life.
When used with the TS566R Smart Spray Valve Controller, the system supports precise control of pre-spray, atomizing air, and post-spray. The compact design and threaded mounting port also support integration into automated dispensing equipment.
Features
- Consistent Spray Coverage: Provides uniform spray performance for controlled and repeatable coating applications.
- No Overspray: Designed to minimize overspray and provide controlled material application.
- Positive Shut-Off: A field-replaceable Delrin® seat provides reliable fluid shut-off and supports long service life.
- Adjustable Flow Control: External stroke adjustment allows fine control of fluid flow for different spray requirements.
- Long Life Cycles: Durable 303 stainless-steel construction and a replaceable Delrin® seat help support extended valve service life.
Specifications
Nozzle Specifications
Two nozzle types are made available: Round (R) for round spray patterns and Fan (F) for elliptically shaped patterns.
| Model | TS5540 Series |
|---|---|
Size | 104.1 x 28.4 mm |
Weight | 331 g |
Viscosity Range | 1 – 5,000 cps |
Fluid Inlet Port | 1/8” NPT female |
Fluid Outlet Port | Spray Cap Fan Style / Spray Cap Round Style |
Air Inlet Port | 10-32 UNF |
Aux Air Inlet Port | 10-32 UNF |
Activation Pressure | 70 psi |
Max. Fluid Pressure | 100 psi |
Operating Frequency | Exceeds 400 cycles/min. |
Mounting Port | 1/4-20 UNC-2B |
Wetted Parts | 303 Stainless Steel, Teflon®, Delrin® |
| Part Number | Nozzle ID | Min. Ø Spray | Style |
|---|---|---|---|
TS5540-014R | 0.014″ / 0.36mm | 0.17″ / 4.32mm | Round |
TS5540-028R | 0.028″ / 0.71mm | 0.20″ / 5.08mm | Round |
TS5540-046R | 0.046″ / 1.17mm | 0.25″ / 6.35mm | Round |
TS5540-014F | 0.014″ / 0.36mm | 0.50″ / 12.7mm | Fan |
TS5540-028F | 0.028″ / 0.71mm | 0.65″ / 16.51mm | Fan |
TS5540-046F | 0.046″ / 1.17mm | 1.00″ / 24.4mm | Fan |
