TS5620 Series Diaphragm Valves
Description
Diaphragm Valves are engineered to dispense low to medium-viscosity materials with high precision, accommodating a wide range of shot and bead sizes—down to a fraction of a microliter.
Equipped with an internal spring return, these valves are fully compatible with Techcon Systems time/pressure controllers. The short opening stroke ensures extremely fast response times and positive shut-off, preventing material drool. For added flexibility, an external stroke control allows operators to fine-tune shot sizes with ease.
Designed for seamless integration, the compact footprint offers mounting versatility for automated applications. These valves are built for high reliability and ease of use, featuring a low-maintenance design with user-replaceable spare parts to minimize downtime.
Technical Highlights
- Precision Dispensing: Capable of consistent micro-deposits.
- Rapid Response: Short stroke length for high-speed cycles.
- User-Friendly Control: Simple external adjustment for flow calibration.
- Automation Ready: Compact design for tight integration.
Recommended Controllers
For optimal performance, use in conjunction with the following:
- TS555R / TS350 / TS250 Controllers
- TS1258 Pressure Tank (or equivalent)
Features
- Seal-less Design: Features an innovative seal-less construction, providing excellent resistance to moisture-sensitive materials and reducing maintenance points.
- Versatile Configurations: Available in multiple configurations for broad fluid compatibility, including Delrin® options specifically designed for UV-sensitive fluids.
- Compact Footprint: The space-saving design ensures easy integration into tight production environments.
- Flexible Integration: Supports both vertical and horizontal mounting options, allowing for seamless installation into automated machinery.
- Application Versatility: Available in both machine-mounted and hand-held versions to suit various manual or automated workflow requirements.
Specifications

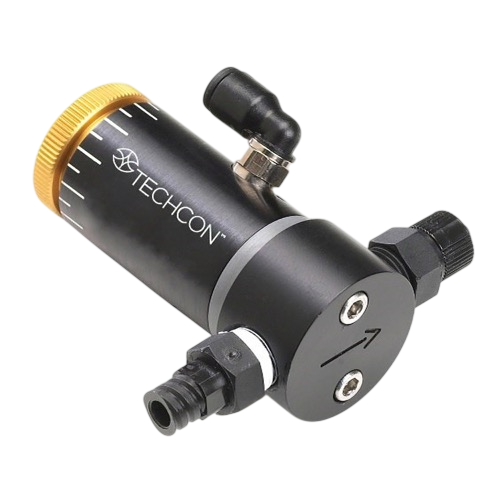

Horizontal Mounting
| Model | TS5620HT | TS5620HU | TS5621HD |
|---|---|---|---|
|
Size |
62.74 X 23.88 mm |
62.74 X 23.88 mm |
62.74 X 26.90 mm |
|
Weight |
69 g |
60 g |
70 g |
|
Viscosity Range |
1 – 50,000 cps |
1 – 50,000 cps |
1 – 50,000 cps |
|
Fluid Inlet Port |
1/4-28 UNF |
1/4-28 UNF |
1/8” NPT female |
|
Fluid Outlet Port |
1/4-28 UNF |
1/4-28 UNF |
1/8” NPT female |
|
Air Inlet Port |
10-32 UNF |
10-32 UNF |
10-32 UNF |
|
Aux Air Inlet Port |
10-32 UNF |
10-32 UNF |
10-32 UNF |
|
Activation Pressure |
70 psi |
70 psi |
70 psi |
|
Max. Fluid Pressure |
70 psi |
70 psi |
70 psi |
|
Operating Frequency |
Exceeds 400 cycles/min. |
Exceeds 400 cycles/min. |
Exceeds 400 cycles/min. |
|
Mounting Port |
10-32 UNF |
10-32 UNF |
10-32 UNF |
|
Wetted Parts |
Teflon® |
UHMWPE |
UHMWPE, Delrin® |

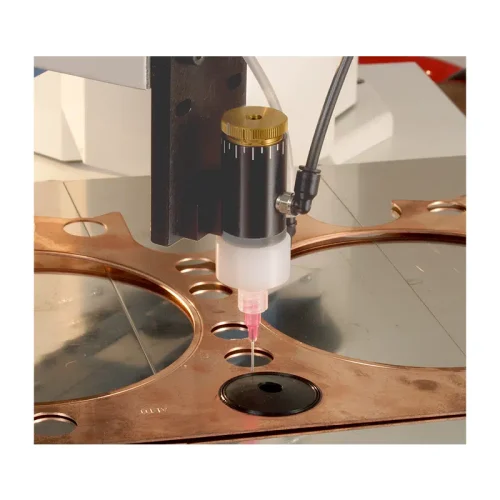

Vertical Mounting

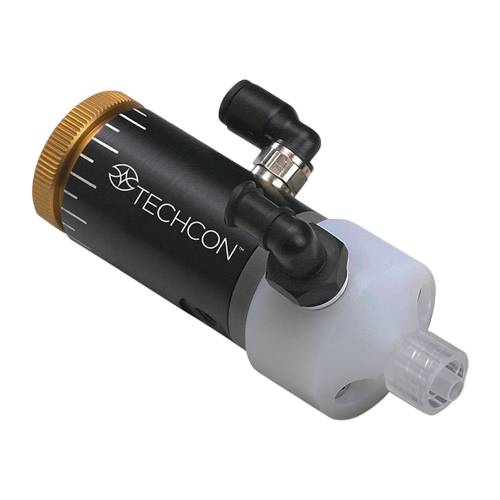

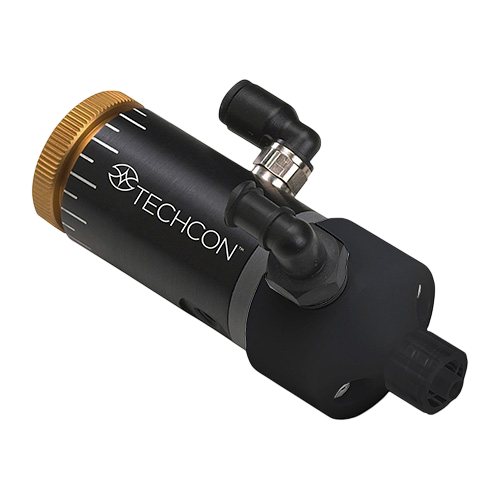

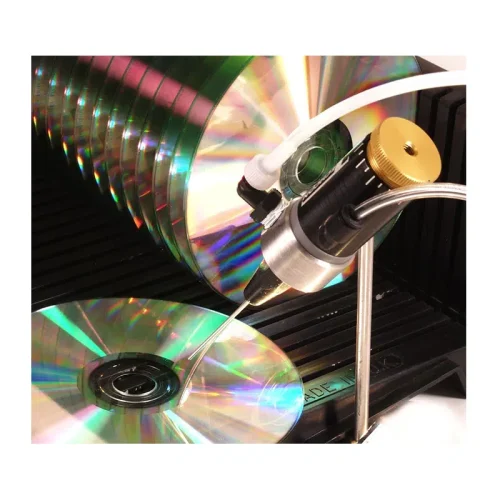

| ITEM | TS5622VT | TS5622VU | TS5622VD | TS5622VU-DVD |
|---|---|---|---|---|
|
Size |
62.74 X 23.88 mm |
62.74 X 23.88 mm |
62.74 X 26.90 mm |
88 X 27 mm |
|
Weight |
80 g |
64 g |
71 g |
120 g |
|
Viscosity Range |
1 – 50,000 cps |
1 – 50,000 cps |
1 – 50,000 cps |
1 – 50,000 cps |
|
Fluid Inlet Port |
1/8” NPT female |
1/8” NPT female |
1/8” NPT female |
1/8” NPT female |
|
Fluid Outlet Port |
1/4-28 UNF |
1/4-28 UNF |
1/4-28 UNF |
Luer lock connection |
|
Air Inlet Port |
10-32 UNF |
10-32 UNF |
10-32 UNF |
10-32 UNF |
|
Aux Air Inlet Port |
10-32 UNF |
10-32 UNF |
10-32 UNF |
10-32 UNF |
|
Activation Pressure |
70 psi |
70 psi |
70 psi |
70 – 90 psi |
|
Max. Fluid Pressure |
70 psi |
70 psi |
70 psi |
70 psi |
|
Operating Frequency |
Exceeds 400 cycles/min. |
Exceeds 400 cycles/min. |
Exceeds 400 cycles/min. |
Exceeds 400 cycles/min. |
|
Mounting Port |
10-32 UNF |
10-32 UNF |
10-32 UNF |
10-32 UNF |
|
Wetted Parts |
Teflon® |
UHMWPE |
UHMWPE, Delrin® |
303 Stainless Steel, UHMWPE |
