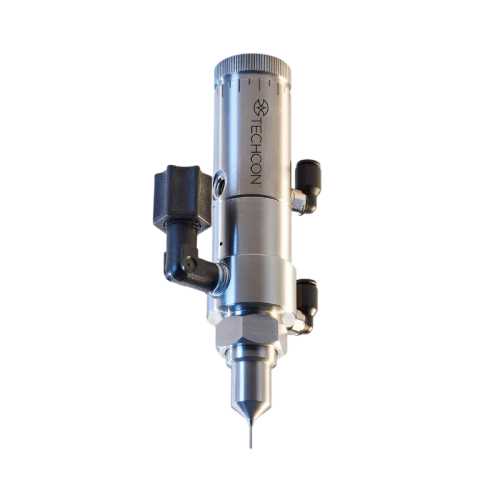

Techcon TS5540-MS Micro Spray Valve
Precision Micro-Spray Dispensing for Small Areas
The Techcon TS5540-MS Micro Spray Valve is designed for precise spray applications of low- to medium-viscosity fluids using disposable dispensing tips. It produces uniform spray patterns from approximately 4.6 mm to 15 mm in diameter for controlled small-area coating.
An external stroke control allows fine adjustment of fluid flow, while the replaceable seat provides positive shut-off and extended valve life. The valve is suitable for applications requiring precise spraying between closely spaced or tall components.
When used with the TS566R Smart Spray Valve Controller, the system supports control of pre-spray, atomizing air, and post-spray. Typical applications include conformal coating, lubrication, activator spraying, and other precision spray processes.
Features
- Consistent Micro-Spray Coverage: Provides uniform spray patterns for controlled small-area coating applications.
- Replaceable Disposable Tips: Uses replaceable dispensing tips for flexible spray sizes and convenient setup.
- Reduced Overspray: Designed to minimize overspray during precise low- to medium-viscosity spray applications.
- Positive Shut-Off: A field-replaceable seat provides reliable fluid shut-off and helps extend valve service life.
- Adjustable Flow Control: External stroke adjustment allows fine control of fluid flow for different spray requirements.
- Long Service Life: Durable stainless-steel construction and replaceable wear components support extended valve service life.
Specifications
| Model | TS5540-MS |
|---|---|
Size | 122 x 28.5 mm |
Weight | 331 g |
Viscosity Range | 1 – 5,000 cps |
Fluid Inlet Port | 1/8” NPT female |
Fluid Outlet Port | TE Tip Spray Cap |
Air Inlet Port | 10-32 UNF |
Aux Air Inlet Port | 10-32 UNF |
Activation Pressure | 70 psi |
Max. Fluid Pressure | 100 psi |
Operating Frequency | Exceeds 400 cycles/min. |
Mounting Port | 1/4-20 UNC-2B |
Wetted Parts | 303 Stainless Steel, Teflon®, Delrin® |
