Techcon TS5322 Mini Spool Valve

Precision Dispensing with Adjustable Suck-Back

The Techcon TS5322 Mini Spool Valve is designed for precise dispensing of medium- to high-viscosity fluids across a wide range of shot and bead sizes. Its compact form factor provides higher accuracy at lower operating pressures than larger spool-valve designs.

A balanced spool design provides fast ON/OFF dispensing, while adjustable suck-back helps prevent dripping after each dispense cycle. The valve can operate in single-acting mode with an internal spring return or in double-acting mode using air closing.

The TS5322 supports fluid pressures up to 500 psi and viscosities up to 1,000,000 cP, making it suitable for compact automated dispensing applications.

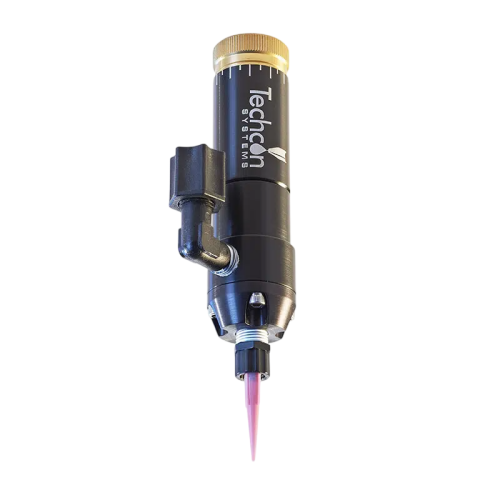

Techcon TS5322 Mini Spool Dispensing Valve

Features

  • Precise & Consistent Dispensing: Provides accurate and repeatable shot sizes across a wide range of dispensing applications.
  • Adjustable Suck-Back: External adjustment allows fine control of suck-back to help prevent dripping after each dispense cycle.
  • Compact Mini Spool Design: Smaller form factor provides flexible mounting and easy integration into automated equipment.
  • High Fluid Pressure Capability: Supports fluid pressures up to 500 psi (34.5 bar).
  • Single- or Double-Acting Operation: Can operate with an internal spring return or be configured for air closing.
  • Suitable for Moisture-Sensitive Materials: An oil chamber can provide an additional liquid seal to help protect moisture-sensitive fluids.
  • Easy Maintenance: Designed for convenient servicing without special tools.

Specifications

Model TS5322
Size
99.1 x 28.4 mm
Weight
139 g
Viscosity Range
1 – 1,000,000 cps
Fluid Inlet Port
1/8” NPT female
Fluid Outlet Port
Luer Lock Male
Aux Air Inlet Port
10-32 UNF female
Activation Pressure
70 psi
Max. Fluid Pressure
500 psi
Operating Frequency
Exceeds 500+ cycles/min.
Mounting Port
¼-20 UNC-2B
Wetted Parts
303 SS, Teflon®, Aluminum, EPR
