Techcon TS5420 Precision Needle Valve
Precise Shot & Bead Dispensing with Adjustable Flow Control

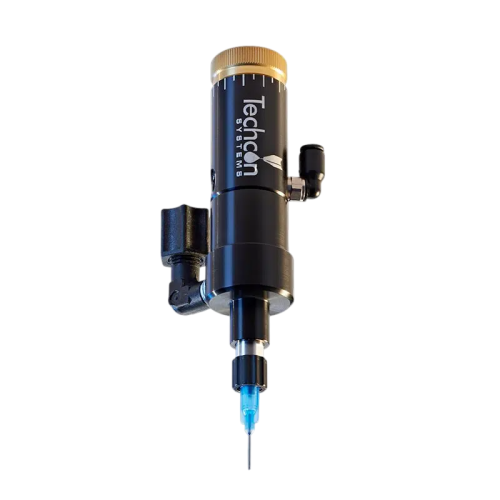

The Techcon TS5420 Precision Needle Valve is designed for accurate dispensing across a wide range of shot and bead sizes. External stroke adjustment allows fine control of dispense volume for repeatable fluid application.

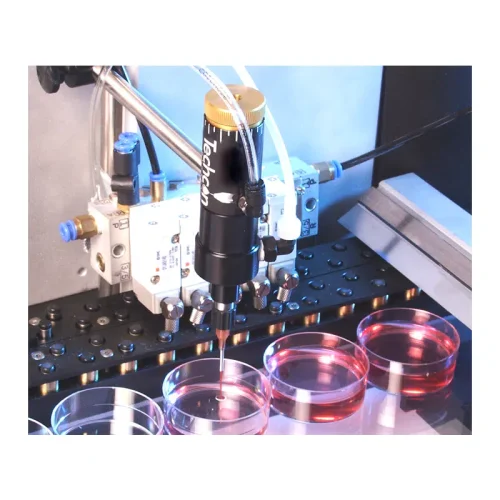

The pneumatically actuated valve can operate with an internal spring close for single-acting use or be configured for air closing in double-acting operation. Its compact design supports easy integration into automated dispensing equipment.
The TS5420 handles fluid pressures up to 300 psi and materials with viscosities up to approximately 100,000 cP. Typical applications include dispensing lubricants, UV adhesives, solvents, inks, oils, primers, and activators.
Features
- Precise & Consistent Deposits: Provides precise and consistent deposit sizes across a wide range of shot and bead applications.
- Rotating Tip Collar: The rotating tip collar allows easy positioning and alignment of bent dispensing tips.
- Low-Maintenance Design: Simple valve construction supports reliable operation with minimal routine maintenance and downtime.
Specifications
| Model | TS5420 |
|---|---|
Size | 117 x 28 mm |
Weight | 136 g |
Viscosity Range | 1 – 100,000 cps |
Fluid Inlet Port | 1/8” NPT female |
Fluid Outlet Port | Male Luer lock |
Air Inlet Port | 10-32 UNF |
Aux Air Inlet Port | 10-32 UNF |
Activation Pressure | 70 psi |
Max. Fluid Pressure | 300 psi |
Operating Frequency | Exceeds 400 cycles/min. |
Mounting Port | 1/4-20 UNC-2B |
Wetted Parts | 303 Stainless Steel, Teflon®, Aluminum, Ethylene Propylene Rubber |
